Name: Sharp Distance Measuring Sensor unit 10 to 80 cm – GP2Y0A21YK0F
SKU: 25-ERIRP020
Price: 489.00 INR
Availability: OutOfStock

Sharp Distance Measuring Sensor unit 10 to 80 cm – GP2Y0A21YK0F

Quick Review:

Model Type: Distance Measuring Sensor
Distance Measuring Range(M): 0.1 to 0.8
Model: GP2Y0A21YK0F (10 to 80 cm)
Operating Voltage (VDC):4.5 ~ 5.5
Screw Hole Size: 37mm apart, 3 mm diameter

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

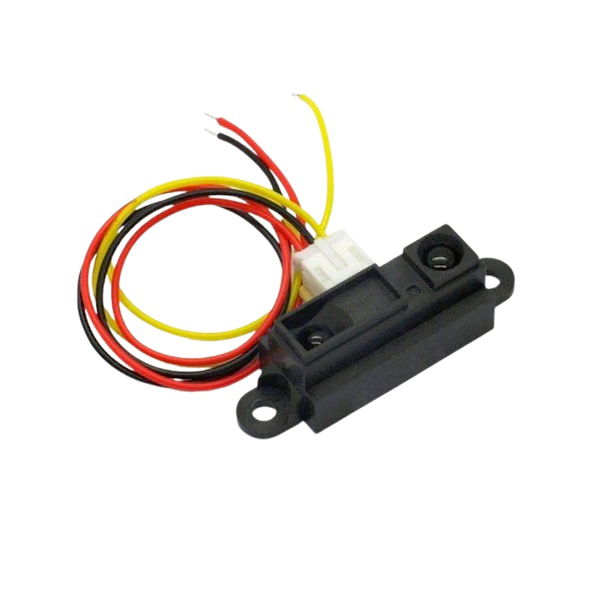

This is a Sharp Distance Measuring Sensor unit 10 to 80 cm – GP2Y0A21YK0F.

This SHARP distance sensor bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. Comes with a 12″ long 3-JST interface wire. These sensors are good for short-range detection. For over 1 m distance, we suggest using sonar sensors. To use, connect the black wire to the ground, the red wire to 5V, and the white wire to the analog input. The analog voltage out will range from 3V when an object is only 4″ (10 cm) away and 0.4V when the object is 32″ (80 cm) away.

Note:

This sensor draws current in large, short bursts, and the manufacturer recommends putting a 10 µF capacitor or larger across power and ground close to the sensor to stabilize the power supply line

Technical Specifications:

Model Type: Distance Measuring Sensor
Distance Measuring Range(M): 0.1 to 0.8
Model: GP2Y0A21YK0F (10 to 80 cm)
Operating Voltage (VDC):4.5 ~ 5.5
Screw Hole Size: 37mm apart, 3 mm diameter
Cable Length (cm):15

Package Includes:

1 Piece-Sharp Distance Measuring Sensor unit 10 to 80 cm – GP2Y0A21YK0F

Weight	4 g
Dimensions	44 × 18 × 13 mm
