-22%

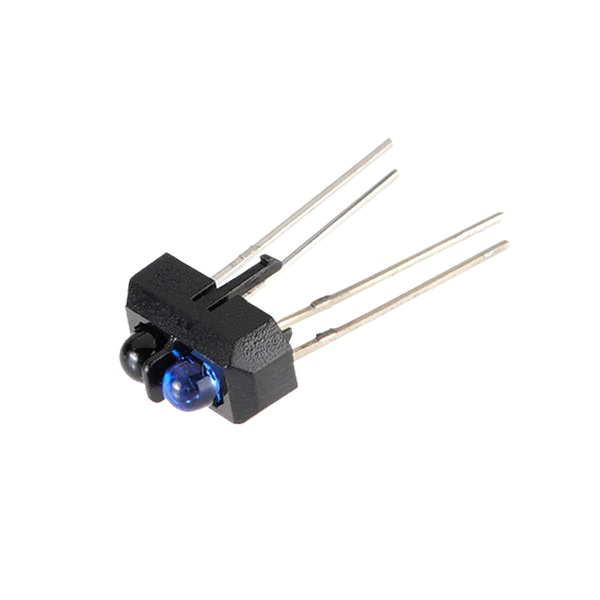

TCRT5000-Reflective Infrared Optical Sensor

TCRT5000-Reflective Infrared Optical Sensor

Original price was: ₹45.00.Current price is: ₹35.00.

SKU : 24-ERIRP004

STOCK: 2 (WooHoo!) Available

Quick Review:

  • Sensing Distance: 12mm.
  • Operating Wavelength: 950 mm.
  • Sensing Method: Reflective.
  • Reverse Voltage: 5V.
  • Forward Current: 60mA.
  • Forward Surge Current: 3A.
  • Emitter Power Dissipation: 100mW.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

2 in stock

Select Below Products to Add Together:
TCRT5000-Reflective Infrared Optical Sensor
This item: TCRT5000-Reflective Infrared Optical Sensor

2 in stock

Original price was: ₹45.00.Current price is: ₹35.00.
Original price was: ₹45.00.Current price is: ₹35.00.
Water Flow Sensor
Water Flow Sensor

1 in stock

-
+
Original price was: ₹350.00.Current price is: ₹240.00.

TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and a Photo detector in a single package. The package includes two mounting clips and four solder able leads. TCRT5000L is a long lead version and the leads can also be trimmed to convert it to TCRT5000. Emitter and Detector are arranged in the same direction to sense the presence of an object by using a reflective IR beam from an object
The module has four pins – Two for Emitter LED and two for Receiver (Photo detector) LED.

Technical Features:

  • Compact construction; sense the presence of an object by using the reflective IR beam from the object.
  • Consists of a photo transistor.
  • Snap-in construction for PCB mounting.
  • Plastic poly carbonate housing construction which prevents crosswalk.
  • Position sensor for shaft encoder.
  • Detection of reflective materials such as paper, IBM cards, magnetic tapes, etc.
  • Limit switches for mechanical motions in VCR.

Technical Specifications:

  • Sensing Distance: 12mm.
  • Operating Wavelength: 950 mm.
  • Sensing Method: Reflective.
  • Reverse Voltage: 5V.
  • Forward Current: 60mA.
  • Forward Surge Current: 3A.
  • Emitter Power Dissipation: 100mW.
  • Collector-Emitter Voltage: 70V.
  • Emitter Collector Voltage: 5V.
  • Collector Current: 100mA.
  • Detector Power Dissipation: 100mW.
  • Sensor Total Power Dissipation: 200mW.
  • Operating Temperature: -25°C ~ +85°C.

Package Includes:

  • 1 Piece- TCRT5000-Reflective Infrared Optical Sensor

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab

Reviews

There are no reviews yet.

Be the first to review “TCRT5000-Reflective Infrared Optical Sensor”

Your email address will not be published. Required fields are marked *

SKU: 24-ERIRP004 Category: Tags: , , ,
