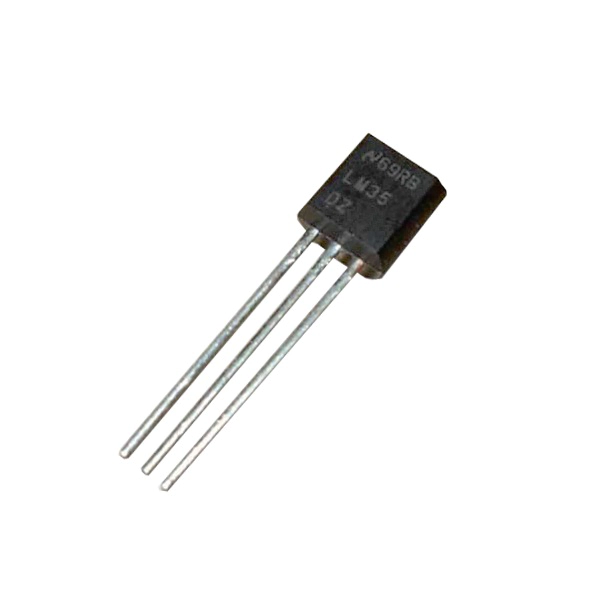

LM35-Temperature Sensor

LM35 Temperature Sensor  series are precision integrated-circuit temperature devices with an output voltage linearly proportional to the Centigrade temperature. The LM35 device has an advantage over linear temperature sensors calibrated in Kelvin, as the user is not required to subtract a large constant voltage from the output to obtain convenient Centigrade scaling. The LM35 device does not require any external calibration or trimming to provide typical accuracies of ±¼°C at room temperature and ±¾°C over a full −55°C to 150°C temperature range.

Technical Features:

• Calibrated Directly in Celsius (Centigrade)
• Linear + 10-mV/°C Scale Factor
• 5°C Ensured Accuracy (at 25°C)
• Rated for Full −55°C to 150°C Range
• Suitable for Remote Applications
• Low-Cost Due to Wafer-Level Trimming
• Operates Voltage: 4 V to 30 V
• Current Drain: Less Than 60-μA
• Low Self-Heating: 0.08°C in Still Air
• Non-Linearity Only ±¼°C Typical
• Low-Impedance Output:1 Ω for 1-mA Load
• Application Includes: Power Supplies, Battery Management. HVAC, Appliances

Package Includes:

• 1 Piece-LM35-Temperature Sensor
