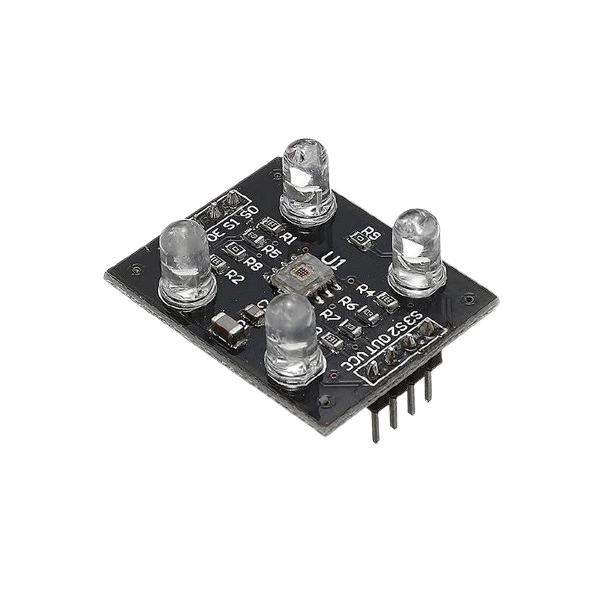

Name: TCS230-Colour Sensor Module
SKU: 25-ERIRP013
Price: 349.00 INR
Availability: OutOfStock

TCS230-Colour Sensor Module

Quick Review:

High-Resolution Conversion of Light Intensity to Frequency
The Break-out board has TCS230 colour sensor
Single-Supply Operation (2.7 V to 5.5 V)
Nonlinearity Error Typically 0.2% at 50 kHz

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

This breakout board is a colour sensor based on TAOS TCS230 programmable colour light to frequency converter which combines configurable silicon photodiodes and a current –to-frequency convertor on single monolithic CMOS integrated circuit.

The light-to-frequency converter reads 8X8 array of photodiodes, each array could filter red, green, blue light or clear from the light source via two control pins(S2, S3) and output a square wave(50% duty cycle) with frequency directly proportional to light intensity(irradiance). The full-scale output frequency can be scaled via two control input pin(S0, S1). Digital inputs and digital output allows direct interface to a microcontroller or other digital logic circuitry.

The TCS230 senses colour light with the help of an 8 x 8 array of photodiodes. Then using a Current-to-Frequency Converter the readings from the photodiodes are converted into a square wave with a frequency directly proportional to the light intensity. Finally, using any Micro we can read the square wave output and get the results for the colour.

Technical Specifications:

High-Resolution Conversion of Light Intensity to Frequency
The Break-out board has TCS230 colour sensor
Single-Supply Operation (2.7 V to 5.5 V)
Nonlinearity Error Typically 0.2% at 50 kHz
Four bright white LED, on-board, can illuminate the object which does not emit light itself
Pins S1 S2 S3 S4 can be used as the pull-up or pull-down resistors on board.
PCB Size: 23mm X 30mm

Package Includes:

1 Piece- TCS230-Colour Sensor Module
