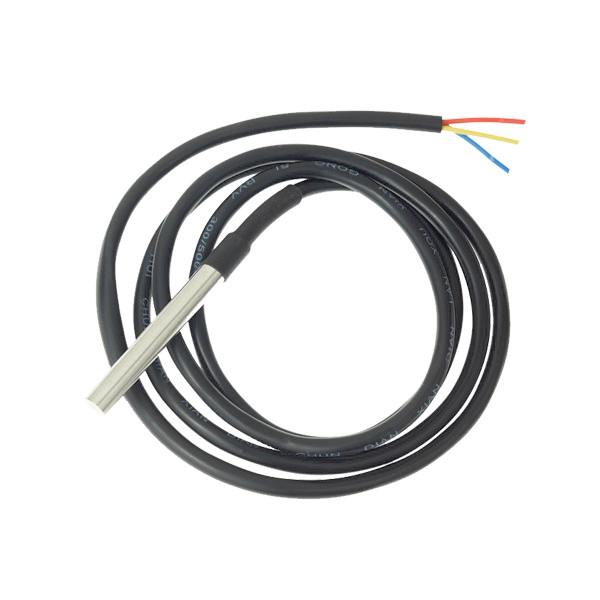

DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)

DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)

Original price was: ₹165.00.Current price is: ₹149.00.

SKU : 15-ERTMP002

STOCK: 5 (WooHoo!) Available

Quick Review:

  • Stainless steel tube 6mm diameter by 30mm long
  • Cable is 36″ long / 91cm, 4mm diameter (1 Meter Long)
  • Contains DS18B20 temperature sensor
  • Three wires – Red connects to 3-5V, Black connects to ground and White is data.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

5 in stock

Select Below Products to Add Together:
DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)
This item: DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)

5 in stock

Original price was: ₹165.00.Current price is: ₹149.00.
Original price was: ₹165.00.Current price is: ₹149.00.
MLX90614-(GY-906) Infrared Temperature Sensor
MLX90614-(GY-906) Infrared Temperature Sensor

Out of stock

-
+
Original price was: ₹1,225.00.Current price is: ₹1,199.00.

DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)

This is a pre-wired and waterproofed version of the DS18B20 temperature sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. Because they are digital, you don’t get any signal degradation even over long distances! These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems.

The only downside is they use the Dallas 1-Wire protocol, which is somewhat complex, and requires a bunch of code to parse out the communication. If you want something really simple, and you have an analog input pin, the TMP36 is trivial to get going.

When using with microcontroller put a 4.7k resistor to sensing pin, which is required as a pullup from the DATA to VCC line.

Technical Specifications:

Cable specs:

  • Stainless steel tube 6mm diameter by 30mm long
  • Cable is 36″ long / 91cm, 4mm diameter (1 Meter Long)
  • Contains DS18B20 temperature sensor
  • Three wires – Red connects to 3-5V, Black connects to ground and White is data.

DS18B20 Sensor Technical specs:

  • Usable temperature range: -55 to 125°C (-67°F to +257°F)
  • 9 to 12 bit selectable resolution
  • Uses 1-Wire interface- requires only one digital pin for communication
  • Unique 64 bit ID burned into chip
  • Multiple sensors can share one pin
  • ±0.5°C Accuracy from -10°C to +85°C
  • Temperature-limit alarm system
  • Query time is less than 750ms
  • Usable with 3.0V to 5.5V power/data

Package Includes:

  • 1 Piece- DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)
Weight 35 g
Dimensions 900 × 6 × 6 mm
