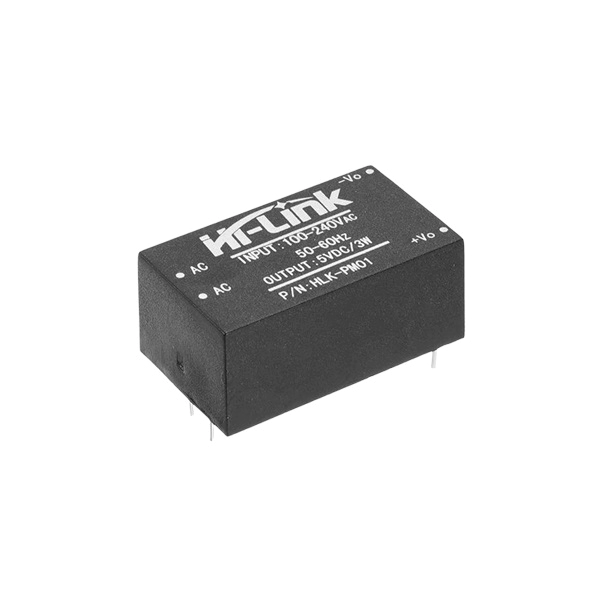

Hi-link HLK-PM01 5V/3W AC to DC Power Supply Module

Technical Specifications:

• Rated input voltage:100-240VAc
• Maximum input current: <0.2A
• Input current surge: <10A
• Maximum input voltage: 270VAc
• Input Low Voltage Efficiency: Vin=110VAc, Output full-load: 69%
• Input High Voltage Efficiency: Vin=220VAc, output full-load: 70%
• Long-term reliability: MTBF 100000h
• Load rated output voltage: +5±0.1
• Short-term maximum output current: 1000mA
• The maximum output current for a long time: 600mA
• Output ripple and noise: 50 mVpp Rated input voltage, full load. Using 20MHz  of bandwidth, the load side with 10uF and 0.1uF capacitor
• Shell maximum surface temperature does not exceed 60°C

Features of HLK-PM01 Hi-link – 5V 3W – AC to DC Power Supply Module:-

• Meet UL, CE requirements,
• Ultra-thin, ultra-small
• All voltage input (AC: 90 ~ 264V)
• Low ripple and low noise
• Output overload and short circuit protection
• High efficiency, high power density
• The product is designed to meet the requirements of EMC and Safety Test
• Low power consumption, environmental protection, no-load loss <0.1W

Environmental conditions of HLK-PM01 Hi-link – 5V 3W – AC to DC Power Supply Module:-

• Technical indicators: Single bit
• Working temperature: – 20-60 +degree
• Storage temperature: + 80-40 -degree
• Relative humidity: 5-95%
• The cooling way: Natural cooling
• The atmospheric pressure: 80-106Kpa
• The altitude: 2000M or less.

Package Includes:

• 1 Piece-Hi-link HLK-PM01 5V/3W AC to DC Power Supply Module
