-22%

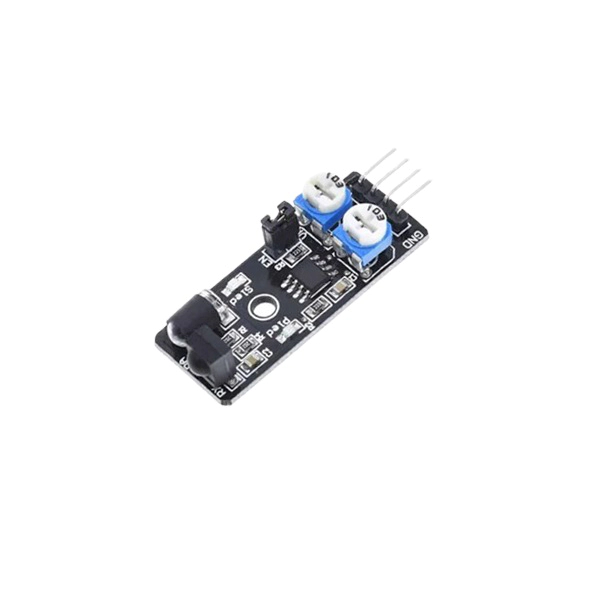

Infrared Obstacle Avoidance Sensor Module

Infrared Obstacle Avoidance Sensor Module

Original price was: ₹89.00.Current price is: ₹69.00.

SKU : 25-ERIRP019

STOCK: 2 (WooHoo!) Available

Quick Review:

  • Working voltage: DC 3.3V – 5V
  • Working current: More than 20mA
  • Working temperature: -10 to 50 centigrade degree
  • Detection distance: 2 – 40cm
  • IO interface : 4 line (- / + / S / EN)

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

2 in stock

Select Below Products to Add Together:
Infrared Obstacle Avoidance Sensor Module
This item: Infrared Obstacle Avoidance Sensor Module

2 in stock

Original price was: ₹89.00.Current price is: ₹69.00.
Original price was: ₹89.00.Current price is: ₹69.00.
TCS230-Colour Sensor Module
TCS230-Colour Sensor Module

Out of stock

-
+
Original price was: ₹749.00.Current price is: ₹349.00.

The Obstacle Avoidance Module comes as an assembled module, as shown above, there are only four pins: +5-volts, GND, output, and EN. Output is an active LOW and has an onboard status LED. The Obstacle Avoidance Module is very easy to interface directly with Arduino or other micro-controllers. Obstacle Avoidance Module also works with the Raspberry Pi with a voltage range of 3-6 volts. Connect Vcc to 3-volts!

The enable pin EN will disable the device when HI (Vcc) and enable it when LO (GND). The onboard jumper can be left open to allow external control of enable/disable of the module. I see no use for this function and would leave the jumper on and the pin disconnected. There are two potentiometers on the module one controlling operating frequency (centred at 38 kHz) and the other controlling intensity.

Technical Specifications:

  • Working voltage: DC 3.3V – 5V
  • Working current: More than 20mA
  • Working temperature: -10 to 50 centigrade degree
  • Detection distance: 2 – 40cm
  • IO interface : 4 line (- / + / S / EN)
  • Output signal: TTL Level
  • Adjusting mode: Multi-resistance regulation
  • Effective angle: 35 degrees
  • The comparator using LM393, is stable.
  • With the screw holes of 3mm, easy to install.

Applications:

  • Obstacle Avoidance: In robotics, these modules are often used in obstacle avoidance systems to help robots navigate and avoid collisions with objects.
  • Line Following: In line-following robots, these modules can detect lines on the ground or track and help the robot stay on the desired path.
  • Object Detection: They can be used for general-purpose object detection in various automation and control applications.

Package Includes:

  • 1 Piece- Infrared Obstacle Avoidance Sensor Module
Dimensions 15 × 55 × 450 mm

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab
