Name: TTP223 1-Channel Capacitive Touch Sensor
SKU: 69-ERTCH001
Price: 26.00 INR
Availability: OutOfStock

TTP223 1-Channel Capacitive Touch Sensor

SKU :

STOCK: (Oh! no) Out of stock

Quick Review:

Operating Voltage: 2.0 V to 5.5 V
Current Consumption: < 7 µA
Start-up Calibration Delay: 0.5 Sec
PCB Size: 15 x 11 mm
Low power consumption.
Power supply: 2 ~ 5.5V DC.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Bulk Quantity? Let’s Talk!

Availability:

Out of stock

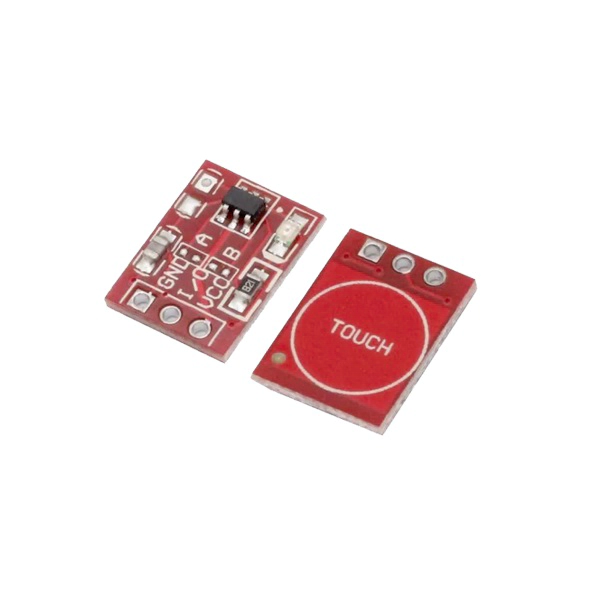

TTP223 Touch Key Module is based on a touch-sensing IC capacitive touch switch module. A capacitive touch sensor module based on the dedicated TTP223 touch sensor IC. The module provides a single integrated touch sensing area of 11 x 10.5mm with a sensor range of ~5mm.

An on-board LED will give a visual indication of when the sensor is triggered. When triggered the output of the module will switch from its idle low state to high. Solder jumpers allow for reconfiguring its mode of operation to be either active low or toggle output.

Technical Specifications:

Operating Voltage: 2.0 V to 5.5 V
Current Consumption: < 7 µA
Start-up Calibration Delay: 0.5 Sec
PCB Size: 15 x 11 mm
Low power consumption.
Power supply: 2 ~ 5.5V DC.
Can replace the traditional touch of a button.
Low Power Mode and Fast Mode
Simple, easy to use, with Auto Calibration
Output mode is set by Jumpers

Package Includes:

1 Piece–TTP223 1-Channel Capacitive Touch Sensor
