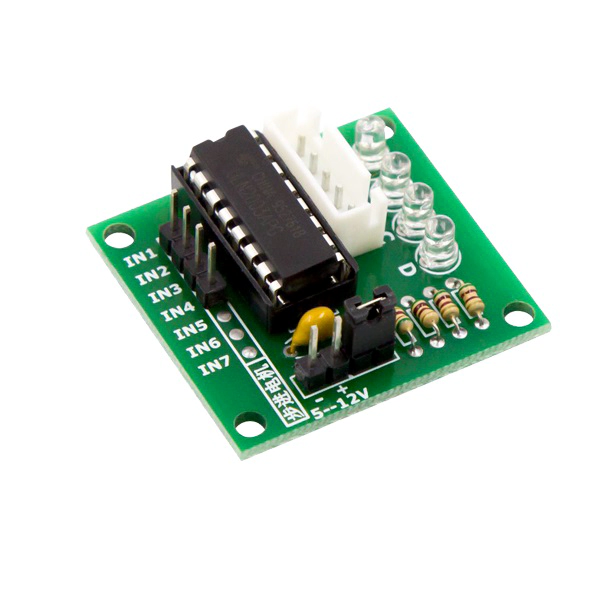

ULN2003 Stepper Motor Driver Module

ULN2003 Stepper Motor Driver Module

Original price was: ₹125.00.Current price is: ₹99.00.

SKU : 13-ERDRV007

STOCK: 15 (WooHoo!) Available

Quick Review:

  • Motor Driver Chip: ULN2003A
  • Power supply: 5-12V
  • Signal indicator: 4-way
  • Step angle: 5.625 x 1 / 64
  • Reduction ratio: 1 / 64
  • Phase: 4
  • Current / Phase: 5V
  • Chip all the pins already leads for easy connection to use

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

15 in stock

Select Below Products to Add Together:
ULN2003 Stepper Motor Driver Module
This item: ULN2003 Stepper Motor Driver Module

15 in stock

Original price was: ₹125.00.Current price is: ₹99.00.
Original price was: ₹125.00.Current price is: ₹99.00.
5V Step-Up Power Module Lithium Battery Charging Protection Board USB (134N3P)
5V Step-Up Power Module Lithium Battery Charging Protection Board USB (134N3P)

5 in stock

-
+
Original price was: ₹95.00.Current price is: ₹89.00.
Add to Wishlist

This is a ULN2003 Driver Module Stepper Motor Driver, small size, and easy to use. It uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option commonly used to run and control the small applications stepper motors.

Note: The colour of PCB may vary according to the Manufacturer.

Technical Specifications:

  • motor driver chip: ULN2003A
  • Power supply: 5-12V
  • Signal indicator: 4-way
  • Step angle: 5.625 x 1 / 64
  • Reduction ratio: 1 / 64
  • Phase: 4
  • Current / Phase: 5V
  • Chip all the pins already leads for easy connection to use
  • Chip all the pins have Input leads Mounted for easy connection to use
  • XH-5P socket can be connected directly 28BYJ-48 Model stepper motor

HOW TO CONTROL STEPPER

The step motor is to a machine to convert pulse to angular displacement. So if you give stepper driver a certain pulse signal, it will drive step motor to a certain angle. you can control the angle the stepper moved by the number of the pulse. And you also can control the speed of the stepper rotate by the frequency of the pulse. The following picture is the schematic of the stepper driver.

ULN2003 Stepper Motor Driver

The following picture is the control signal to drive a 28BYJ48 stepper to rotate 1/4096 circle.

LINE 1 2 3 4 5 6 7 8
RED 1 1 1 1 1 1 1 1
ORANGE 1 1 0 0 0 0 0 1
YELLOW 0 1 1 1 0 0 0 0
PINK 0 0 0 1 1 1 0 0
BLUE 0 0 0 0 0 1 1 1

Package Includes:

  • 1 Piece-ULN2003 Stepper Motor Driver Module
Weight 4 g
