Motor Driver L293D Module With 7505

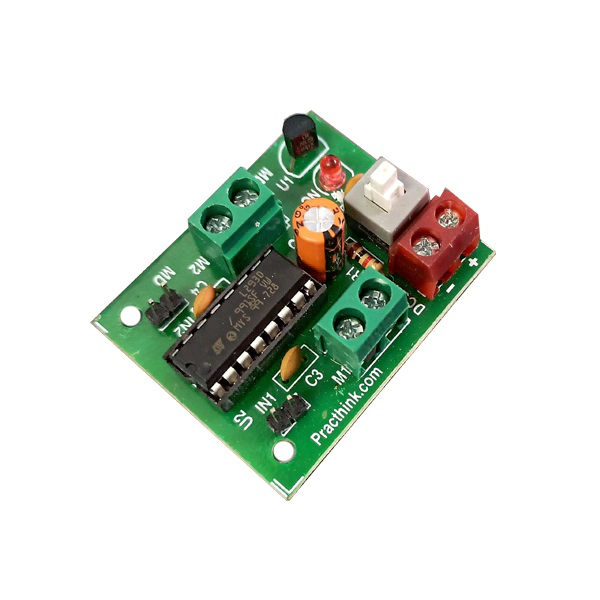

Dual Motor Driver L293D Module With 7505 contains two inbuilt H-bridge driver circuits and direct IR module input. In its common mode of operation, two DC motors can be driven simultaneously, both in forward and reverse direction. The motor operations of two motors can be controlled by input logic at pins 2 & 7 and 10 & 15. Input logic 00 or 11 will stop the corresponding motor. Logic 01 and 10 will rotate it in clockwise and anticlockwise directions, respectively.
Enable pins 1 and 9 (corresponding to the two motors) must be high for motors to start operating. When an enable input is high, the associated driver gets enabled. As a result, the outputs become active and work in phase with their inputs. Similarly, when the enable input is low, that driver is disabled, and their outputs are off and in the high-impedance state.

Technical Specifications:

• Motor voltage Vcc2 (Vs): 4.5V to 36V
• Maximum Peak motor current: 1.2A
• Maximum Continuous Motor Current: 600mA
• Supply Voltage to Vcc1(Vcc): 4.5V to 7V
• Transition time: 300ns (at 5Vand 24V)
• It can be used to run Two DC motors with the same IC.
• Speed and Direction control is possible
• Automatic Thermal shutdown is available
• Available in 16-pin DIP, TSSOP, SOIC packages

Package Includes:

• 1 Piece- Motor Driver L293D Module With 7505
