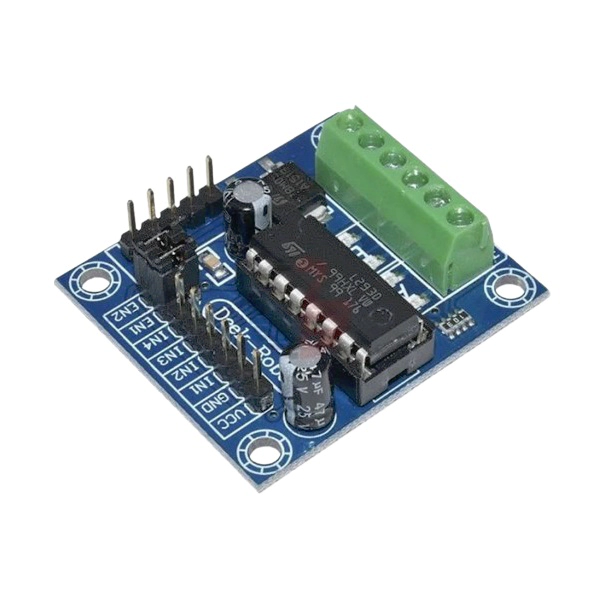

Mini Motor Drive Shield Expansion Board L293D Module

Mini Motor Drive Shield Expansion Board L293D Module

Original price was: ₹125.00.Current price is: ₹95.00.

SKU : 11-ERDRV003

STOCK: 5 (WooHoo!) Available

Quick Review:

  • Input Supply voltage (V):4.5 ~ 25
  • Output Current (per channel) (mA): 600
  • Peak Output Current (per channel) (mA): 1.2
  • Switching Frequency (KHz) :5
  • No. of motors controlled by driver: 2

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

5 in stock

Select Below Products to Add Together:
Mini Motor Drive Shield Expansion Board L293D Module
This item: Mini Motor Drive Shield Expansion Board L293D Module

5 in stock

Original price was: ₹125.00.Current price is: ₹95.00.
Original price was: ₹125.00.Current price is: ₹95.00.
Motor Driver L293D Module With 7505
Motor Driver L293D Module With 7505

Out of stock

-
+
Original price was: ₹125.00.Current price is: ₹95.00.

Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560 is a Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC and stepping motors) and switching power transistors.

To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.

Technical Specifications:

  • Enable facility.
  • Overtemperature protection.
  • Logical “0” input voltage up to 1.5V(High noise immunity).
  • Internal clamp diodes.
  • Model: L293D
  • Input Supply voltage (V):4.5 ~ 25
  • Output Current (per channel) (mA): 600
  • Peak Output Current (per channel) (mA): 1.2
  • Switching Frequency (KHz) :5
  • No. of motors controlled by driver: 2

Package Includes:

  • 1 Piece- Mini Motor Drive Shield Expansion Board L293D Module
Weight 10 g
Dimensions 40 × 35.5 × 12.5 mm

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab
