Sale!

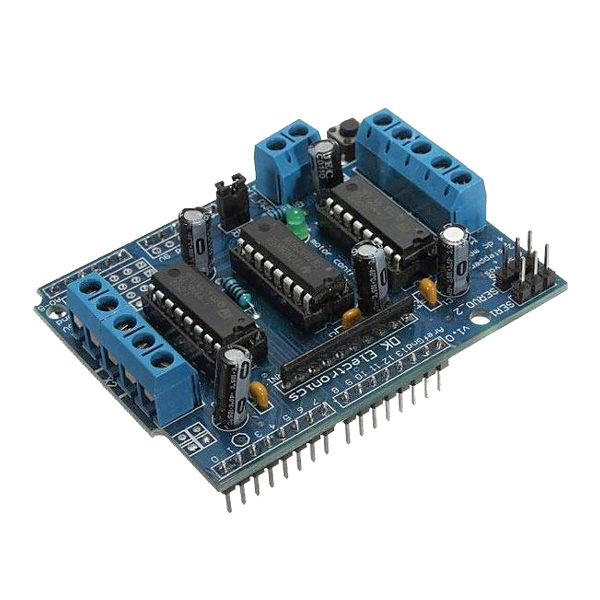

L293D Multi Motor Driver Shield For Arduino-SLAEX039
L293D Multi Motor Driver Shield For Arduino-SLAEX039 - Image 2
L293D Multi Motor Driver Shield For Arduino-SLAEX039 - Image 3
L293D Multi Motor Driver Shield For Arduino-SLAEX039 - Image 4
L293D Multi Motor Driver Shield For Arduino-SLAEX039 - Image 5

L293D Multi Motor Driver Shield For Arduino-SLAEX039

Original price was: ₹230.00.Current price is: ₹149.00.

SKU : 11-ERDRV004

STOCK: 3 (WooHoo!) Available

Quick Review:

  • 2 connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer
  • 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC.
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

3 in stock

Select Below Products to Add Together:
L293D Multi Motor Driver Shield For Arduino-SLAEX039
This item: L293D Multi Motor Driver Shield For Arduino-SLAEX039

3 in stock

Original price was: ₹230.00.Current price is: ₹149.00.
Original price was: ₹230.00.Current price is: ₹149.00.
16 Channel Isolated 5V 10A Relay Module Optocoupler
16 Channel Isolated 5V 10A Relay Module Optocoupler

Out of stock

-
+
Original price was: ₹750.00.Current price is: ₹540.00.
Add to Wishlist

L293D Multi Motor Driver Shield For Arduino-SLAEX039

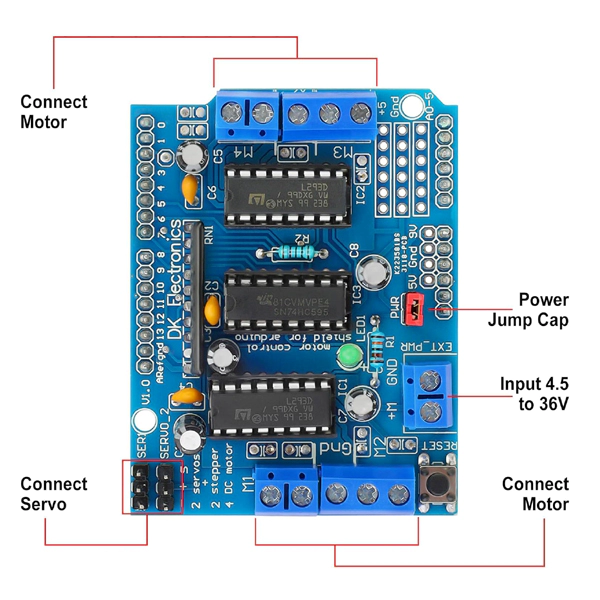

Use this shield to build Robotics and Mechatronics projects based on the Arduino Board. This shield can control all types of popularly used motors – DC Motors, Stepper Motors (both Unipolar and Bipolar Stepper Motors), and Servo Motors! It stacks on top of an Arduino board and requires no external connections using wires or soldering. Library, sample code, and tutorials are available which help you start your project with this board quickly and easily.

Technical Specifications:

  • 2 connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer
  • 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, and internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC.
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.
  • Pull-down resistors keep motors disabled during power-up
  • Big terminal block connectors to easily hook up wires (18-26AWG) and power

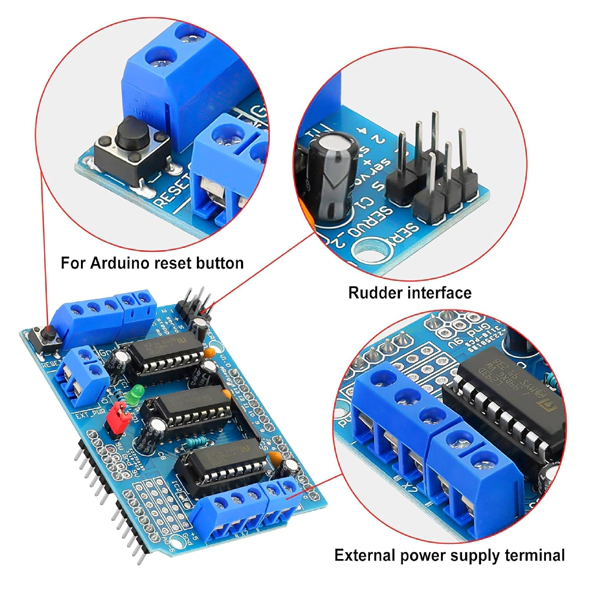

  • Arduino reset button brought up top
  • 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
  • Tested compatible with Arduino Mega 1280 & 2560, Diecimila, Duemilanove, and UNO
  • Download the easy-to-use Arduino software library, check out the examples and you’re ready to go!

Firmware

  • Arduino Stepper/Servo software library with microstepping support.
    To install, click on Download in the top right corner, select zip and uncompress the folder.
    Rename the folder to AF-motor (check that the renamed folder contains the .cpp and .h files) and install into the Arduino sketches/libraries folder. For information on how to use and install libraries, see our tutorial! This version now works with the Mega. Public domain!
  • Accel Stepper library with AFMotor support. This library allows for advanced stepper control including acceleration and deceleration, and concurrent stepper control!
    To install, click on Download in the top right corner, select zip and uncompress the folder.
    Rename the folder to AF-motor (check that the renamed folder contains the .cpp and .h files) and install into the Arduino sketches/libraries folder.

Package Includes:

  • 1 Piece- L293D Multi Motor Driver Shield For Arduino SLAEX039

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab

Reviews

There are no reviews yet.

Be the first to review “L293D Multi Motor Driver Shield For Arduino-SLAEX039”

Your email address will not be published. Required fields are marked *

SKU: 11-ERDRV004 Category: Tags: , , Brand:
