Sale!

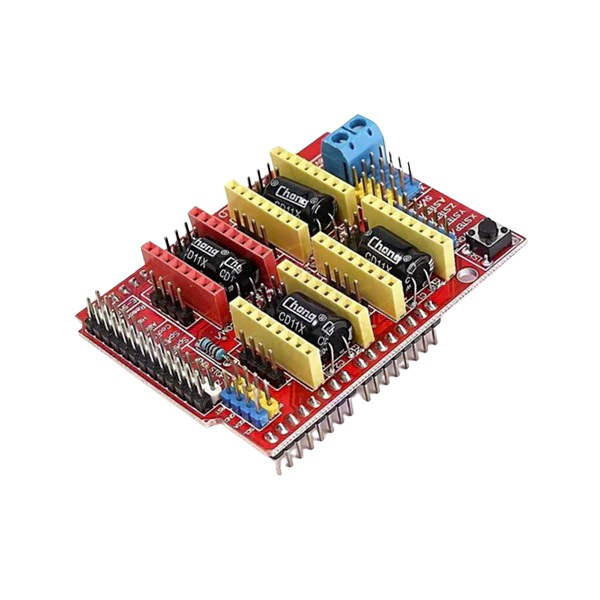

CNC Shield V3 3D Printer Expansion Board

CNC Shield V3 3D Printer Expansion Board

Original price was: ₹249.00.Current price is: ₹169.00.

SKU : 13-ERDRV010

STOCK: 10 (WooHoo!) Available

Quick Review:

  • Arduino CNC Shield Version 3
  • GRBL 0.9 compatible.
  • 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
  • 2 x End stops for each axis (6 in total)
  • Coolant enable

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

10 in stock

Select Below Products to Add Together:
CNC Shield V3 3D Printer Expansion Board
This item: CNC Shield V3 3D Printer Expansion Board

10 in stock

Original price was: ₹249.00.Current price is: ₹169.00.
Original price was: ₹249.00.Current price is: ₹169.00.
L9110S Dual Channel H-Bridge Motor Driver Module
L9110S Dual Channel H-Bridge Motor Driver Module

2 in stock

-
+
Original price was: ₹149.00.Current price is: ₹89.00.
Add to Wishlist

The Arduino CNC Shield makes it easy to get your CNC projects up and running in a few hours.
It uses open-source firmware on Arduino to control 4 stepper motors using 4 A4988 Stepper drivers,, with this shield and the Arduino you can build all kinds of robotics or CNC projects including CNC routers, laser cutters, and even pick & place machines.

This expansion board as a driver expansion board can be used for engraving machines, 3D printers; It is a total of four slots, can drive four A4988 stepper motor. Each board stepper motors only need two IO ports. In other words, six IO ports can be well managed with three stepper motors.

Technical Specifications:

  • Arduino CNC Shield Version 3
  • GRBL 0.9 compatible.
  • 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
  • 2 x End stops for each axis (6 in total)
  • Coolant enable
  • Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)(Not Included)
  • Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
  • Compact design.
  • Stepper Motors can be connected with 4 pin molex connectors or soldered in place. .
  • Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Package Includes:

  • 1 Piece- CNC Shield V3 3D Printer Expansion Board
Weight 33 g
Dimensions 68 × 53 × 20 mm
