5-Channel Flame Sensor Module

A flame detector is a sensor designed to detect and respond to the presence of a flame or fire in a larger area, allowing flame detection.  A flame detector can often respond faster and more accurately than a smoke or heat detector due to the mechanisms it uses to detect the flame. Responses to a detected flame depend on the installation but can include sounding an alarm, deactivating a fuel line (such as a propane or a natural gas line), and activating a fire suppression system. When used in applications such as industrial furnaces, their role is to provide confirmation that the furnace is working properly; in these cases, they take no direct action beyond notifying the operator or control system.

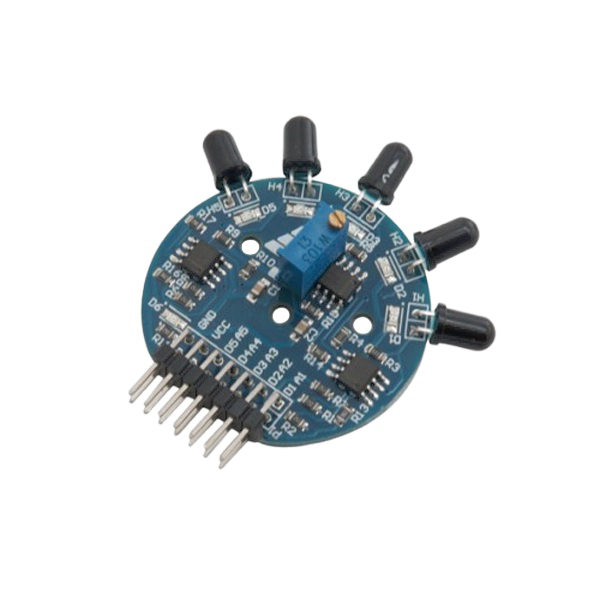

5-Channel Flame Sensor Module is a 5 channel flame detector module used to detect flame in the larger area( >120 degrees). If you need a robot which should detect any fire around, then this module will be very useful for you. It detects the fire with 5 flame sensors which are arranged with 30 degrees.

Technical Specifications:

• Operating Voltage(VDC): 3.3 to 9
• Detecting Range() >120
• Board Diameter (mm): 40
• Total Diameter(mm) : 57
• Analog and digital outputs
• On-board potentiometer and indicators
• 1% resistors to make this module more reliable and precise
• Can output the analog signal can be accurately measured, for high precision applications
• Adjustable detection range digital output, analog output sensitivity adjustable design flexibility

Package Includes:

• 1 Piece- 5-Channel Flame Sensor Module
