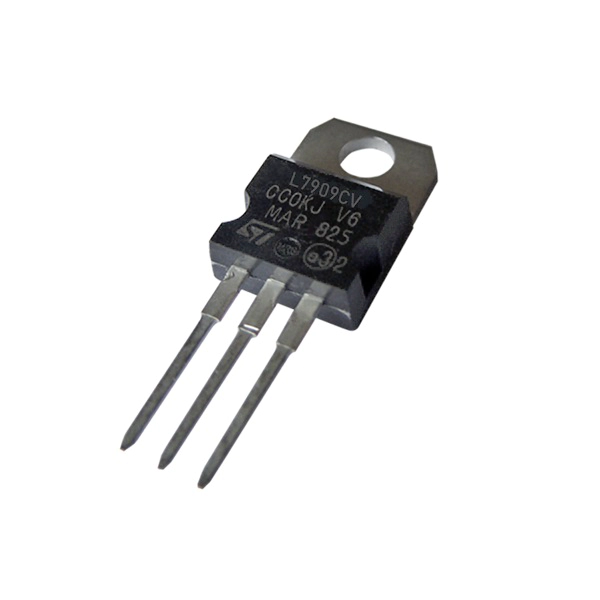

Name: LM7909 IC - 9V Negative Voltage Regulator
SKU: 33-ERREG008
Price: 14.00 INR
Availability: OutOfStock

LM7909 IC – 9V Negative Voltage Regulator

SKU :

STOCK: (Oh! no) Out of stock

Quick Review:

9V Negative Voltage Regulator
Output Voltage: -9V
Output Current: 1.5A
Minimum Input Voltage: 12V
Maximum Input Voltage: 25V
Operating current(IQ): 5mA

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

The LM7909 (3-terminal regulators) is available with fixed output voltage of b9V. These devices need only one external component a compensation capacitor at the output. The LM79XX series is packaged in the TO-220 power package and is capable of supplying 1.5A of output current.

These regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions. Low ground pin current of the LM7909 allows the output voltage to be easily boosted above the preset value with a resistor divider. The low quiescent current drain of these devices with a specified maximum change with line and load ensures good regulation in the voltage-boosted

mode.

Technical Specifications:

9V Negative Voltage Regulator
Output Voltage: -9V
Output Current: 1.5A
Minimum Input Voltage: 12V
Maximum Input Voltage: 25V
Operating current(IQ): 5mA
Internal Thermal Overload and Short circuit current limiting protection is available.
Junction Temperature maximum 125 degrees Celsius
Available in TO-220 and KTE package

Package Includes:

1 Piece – LM7909 IC – 9V Negative Voltage Regulator

Weight	2 g
