Name: IRFZ44N MOSFET - 55V 49A N-Channel Power MOSFET
SKU: 33-ERTRN008
Price: 35.00 INR
Availability: OutOfStock

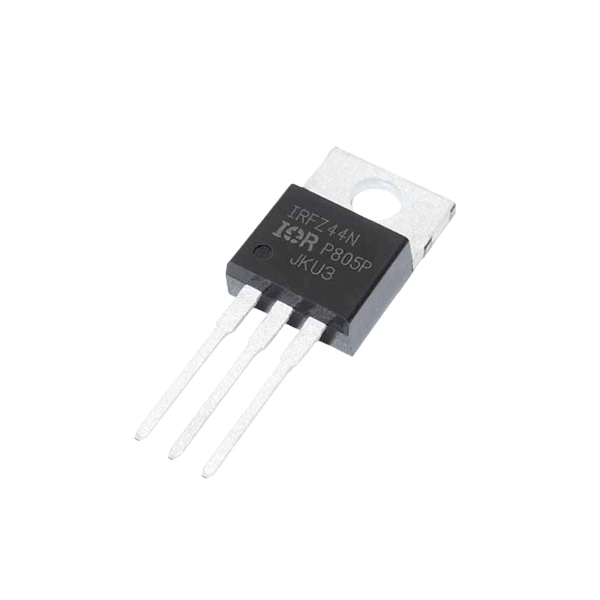

IRFZ44N MOSFET – 55V 49A N-Channel Power MOSFET

SKU :

STOCK: (Oh! no) Out of stock

Quick Review:

Package: TO-220 Package
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Drain-Source Breakdown Voltage (Vds): 55V
Continuous Drain Current (Id): 49v
Drain-Source Resistance (Rds On): 0.0175Ohms

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

IRFZ44N is specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed, and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.

Technical Features:

Advanced Process Technology
Ultra Low On-Resistance
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Lead-Free, RoHS Compliant

Technical Specifications:

Package: TO-220 Package
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Drain-Source Breakdown Voltage (Vds): 55V
Continuous Drain Current (Id): 49v
Drain-Source Resistance (Rds On): 0.0175Ohms
Gate-Source Voltage (Vgs): 20v
Gate Charge (Qg): 63nC
Operating Temperature Range:55 – 175°C
Power Dissipation (Pd): 94W

Package Includes:

1 Piece- IRFZ44N MOSFET – 55V 49A N-Channel Power MOSFET

Weight	3 g
Dimensions	10 × 5 × 15 mm
