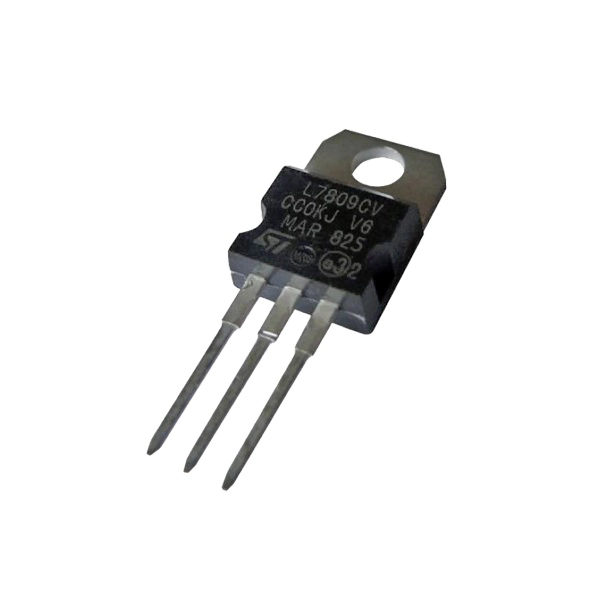

Name: LM7809 IC - 9V Positive Voltage Regulator IC
SKU: 33-ERREG004
Price: 14.00 INR
Availability: InStock

LM7809 IC – 9V Positive Voltage Regulator IC

SKU :

STOCK: 4 (WooHoo!) Available

Quick Review:

Input Voltage: 12 Volt to 48 Volt
Output Volt: 9 Volt
Maximum Output Amp: 1 Amp
Pin 1 (Input Pin): The Input pin is the pin that accepts the incoming DC voltage, which the voltage regulator will eventually regulate down to 9 volts.
Pin 2 (Ground): Ground pin establishes the ground for the regulator.
Pin 3 (Output Pin): The Output pin is the regulated 9 volts DC.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

4 in stock

Fixed voltage Positive and Negative regulator ICs are used in circuits to give precise regulated voltage. 78 XX series regulator IC can handle a maximum of 1-ampere current. The Regulator ICs require a minimum 1.5 higher input voltage than their voltage rating. For example, the 7809 IC requires a minimum of 12 volts to give 9-volt output.

Technical Specifications:

Input Voltage: 12 Volt to 48 Volt
Output Volt: 9 Volt
Maximum Output Amp: 1 Amp
Pin 1 (Input Pin): The Input pin is the pin that accepts the incoming DC voltage, which the voltage regulator will eventually regulate down to 9 volts.
Pin 2 (Ground): Ground pin establishes the ground for the regulator.
Pin 3 (Output Pin): The Output pin is the regulated 9 volts DC.

Package Includes:

1 Piece – LM7809 IC – 9V Positive Voltage Regulator IC

Weight	2 g
