Concept of zero turn drive (Tata pixel)

Abstract:  This project presents a prototype model of a “Zero-Turn Drive” system. The model demonstrates a mechanism that enables a vehicle to achieve zero turning radius, allowing it to take a U-turn about the midpoint of the rear axle. This innovative concept enables extremely quick turning by permitting the vehicle to rotate almost in place, without requiring the large turning space needed in conventional steering systems. A similar concept has been implemented in the Tata Pixel car.

In a normal steering mechanism, a vehicle follows a circular path while turning. However, in a zero-turn radius mechanism, the vehicle rotates around an axis passing through its own center of gravity. As a result, the vehicle can turn within the space equal to its own length, without any additional clearance. This makes parking, maneuvering in tight spaces, and performing sharp U-turns significantly easier.

The prototype model shows how a specially designed sliding gear train combined with an advanced steering mechanism can enable this unique movement, making it a promising concept for future automobile technology.

Key Words: Automobile, Zero Turn Drive, Sliding Gear Train, Steering Mechanism, Prototype Model.

Applications of Zero-Turn Drive Mechanism

1. Urban Vehicles:
   Enables cars to make sharp turns in congested streets, narrow lanes, and crowded urban environments.
2. Parking Assistance:
   Allows vehicles to rotate almost in place, making parallel parking and tight-space parking extremely easy.
3. Autonomous Vehicles:
   Useful for self-driving cars where precision maneuvering is required in restricted or complex environments.
4. Material Handling Vehicles:
   Can be used in forklifts, warehouse robots, and industrial vehicles that must turn in small aisles.
5. Military & Defense Vehicles:
   Helps in quick maneuvering of armored or tactical vehicles in limited battlefield spaces.
6. Agricultural & Construction Equipment:
   Zero-turn tractors, mowers, and compact loaders already use similar mechanisms for efficient movement.
7. Emergency Vehicles:
   Fire trucks, ambulances, and rescue vehicles can benefit from rapid turning in confined situations.

Shipping Time :> Processing Time—>Demo Class —> Shipped —> Transit Time 3 to 7 Day–> Delivery

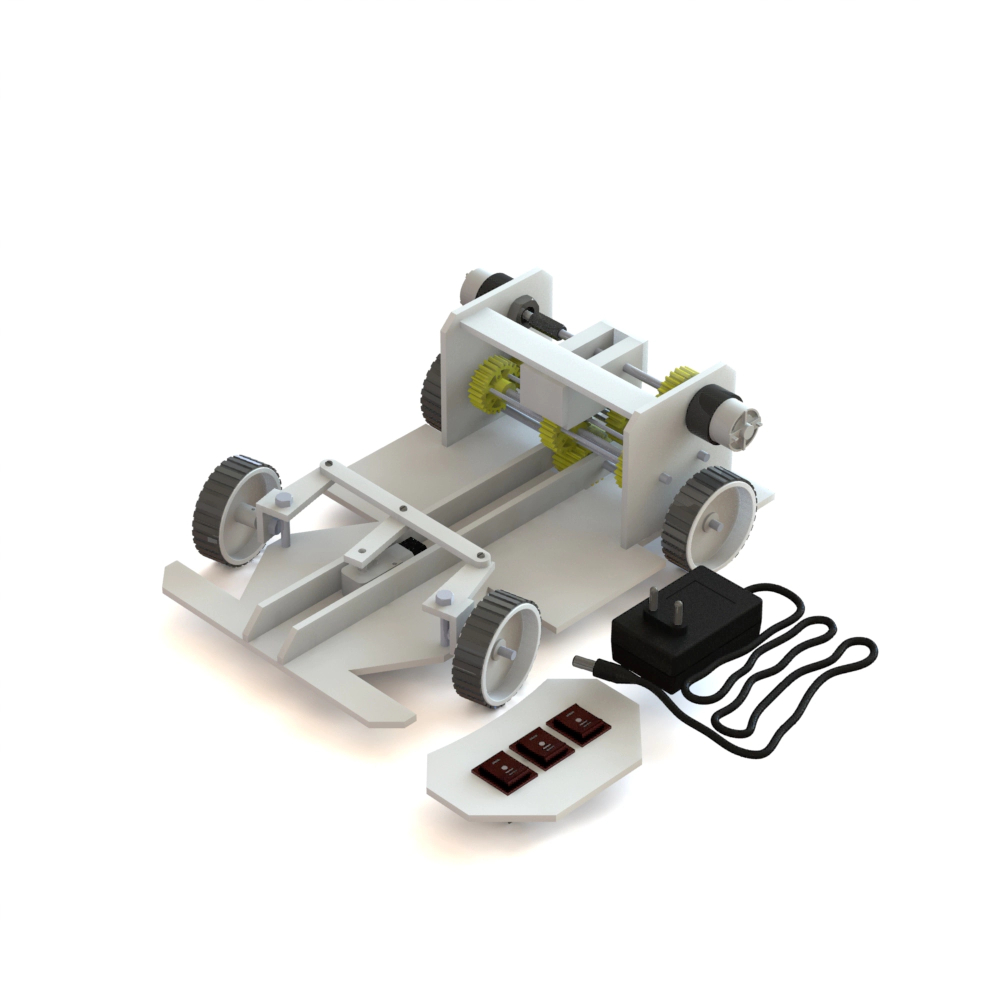

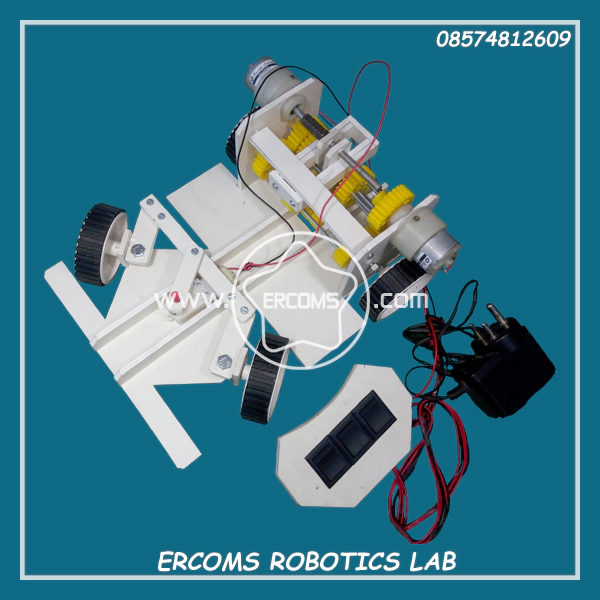

**Project Image only Illustration Purpose. The project may be the same or maybe an improved Version.**
