LM2596S DC-DC Buck Converter Power Supply
Original price was: ₹92.00.₹79.00Current price is: ₹79.00.
Quick Review:
- nput voltage: 4V-35V
- Output voltage: 1.23V to 30V
- Input Current: 3A (maximum)
- Maximum Power Dissipation: 10 watts (Without Heat sink)
- Regulator Type: Step Down ( Non Isolated input to Output )
- Output Current: 2A Rated, ( 3A maximum with heat sink )
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Bulk Quantity? Let’s Talk!
Availability:
15 in stock
15 in stock
10 in stock
Finding power supplies for your project can be quite difficult and time consuming, particularly if your project requires a number of components with varying voltages, The DC-DC Buck Converter LM2596s solves this by converting higher voltage to lower voltage without the need for an additional power supply.
This DC to DC Buck Converter LM2596S is a step-down power module with adjustable voltage range, capable of driving a load up to 3A with high efficiency. Using this module with current above 2.5A (or output power greater than 10W), requires the addition of heat-sink to prevent overheating.
If you are looking to increase or step-up the voltage, we have the DC-DC Boost Converter LM2577.
Technical Specifications:
- Input voltage: 4V-35V
- Output voltage: 1.23V to 30V
- Input Current: 3A (maximum)
- Maximum Power Dissipation: 10 watts (Without Heat sink)
- Regulator Type: Step Down ( Non Isolated input to Output )
- Output Current: 2A Rated, ( 3A maximum with heat sink )
- Switching Frequency: 150kHz
- Efficiency: Up to 92% ( when output voltage is set high )
- Dropout Voltage: 2vdc minimum
- Load Regulation: +/- 0.5%
- Voltage Regulation: +/- 2.5%
- Temperature: -40 to +85 deg C ( output power less than 10Watts )
Package Includes:
- 1 Piece–LM2596S DC-DC Buck Converter Power Supply
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
Related products
-

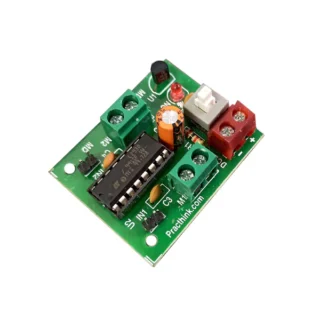

Motor Driver L293D Module With 7505
