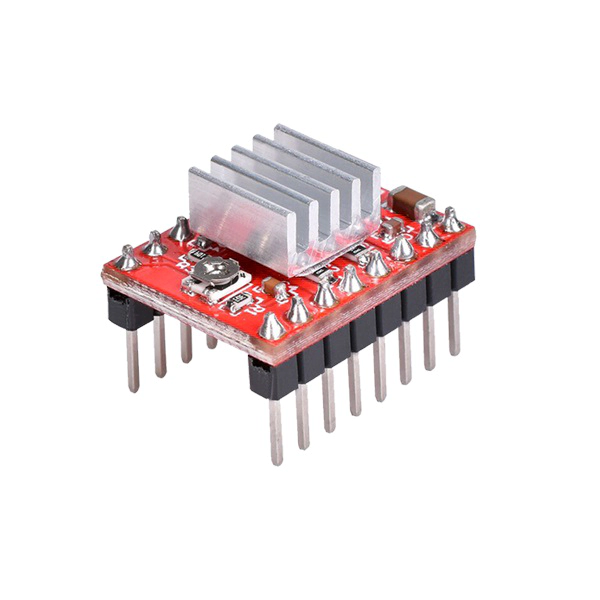

A4988 Stepper Motor Driver Module with Aluminium Heat Sink

A4988 Stepper Motor Driver Module with Aluminium Heat Sink

Original price was: ₹128.00.Current price is: ₹94.00.

SKU : 13-ERDRV008

STOCK: 47 (WooHoo!) Available

Quick Review:

  • simple step and direction control interface
  • Short-to-ground and shorted-load protection
  • Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

47 in stock

Select Below Products to Add Together:
A4988 Stepper Motor Driver Module with Aluminium Heat Sink
This item: A4988 Stepper Motor Driver Module with Aluminium Heat Sink

47 in stock

Original price was: ₹128.00.Current price is: ₹94.00.
Original price was: ₹128.00.Current price is: ₹94.00.
16 Channel Isolated 5V 10A Relay Module Optocoupler
16 Channel Isolated 5V 10A Relay Module Optocoupler

Out of stock

-
+
Original price was: ₹750.00.Current price is: ₹540.00.

A4988 is a complete micro-stepping motor driver with built-in translator for easy operation. This product is available in full, half, 1/4, 1/8 and 1/16 step modes operate bipolar stepper motors, output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator in slow or mixed decay modes. A4988 converter is the key to easy implementation. As long as the “step” input inputting one pulse drives the motor one micro-step. There are no phase sequence tables, high-frequency control lines, or complex interfaces to program. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened.

In the micro-step operation, A4988 chopping control inside automatically selects the current decay mode (Slow or Mixed). In mixed decay mode, the device is initially set to a fixed downtime in some fast decay, then the rest of the slow decay downtime. Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry is provided to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes thermal shutdown with hysteresis, under-voltage lockout (UVLO), and crossover-current protection. Special power sequencing.

A4988 surface mount QFN package (ES), a size of 5 mm × 5 mm, nominal overall package height of 0.90 mm, with an exposed pad for enhanced thermal dissipation. This package is Pb (suffix-T), with 100% matte tin lead frame plating.

Technical Specifications:

  • Simple step and direction control interface
  • Short-to-ground and shorted-load protection
  • Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above
  • your stepper motor’s rated voltage to achieve higher step rates.

Package Includes:

  • 1 Piece- A4988 Stepper Motor Driver Module
  • 1 Piece – Heatsink
Weight 3 g
Dimensions 20 × 19 × 12 mm
