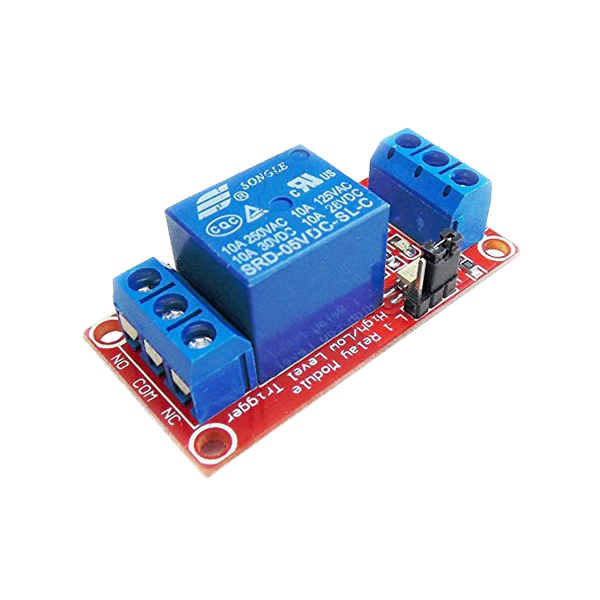

1 Channel 5V With H/L Level Trigger Relay Module With Optocoupler

1 Channel 5V With H/L Level Trigger Relay Module With Optocoupler

Original price was: ₹165.00.Current price is: ₹149.00.

STOCK: 5 In Stock. (WooHoo!🤗🥰) Order Now!

Same-Day Delivery: Via Porter, within Lucknow City only.

SKU: 35-ERRLY007

Quick Review:

  • Relay Type : Low-Level Trigger
  • Logic Input (V): 3.3 ~ 5
  • Trigger Voltage (VDC): 5/12/24
  • Switching Voltage (VAC): 250@10A
  • Switching Voltage (VDC): 30@10A
  • 1 LEDs to indicate when relays are ON.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Bulk Quantity? Let’s Talk!

Availability:

5 in stock

Select Below Products to Add Together:
1 Channel 5V With H/L Level Trigger Relay Module With Optocoupler
This item: 1 Channel 5V With H/L Level Trigger Relay Module With Optocoupler

5 in stock

Original price was: ₹165.00.Current price is: ₹149.00.
Original price was: ₹165.00.Current price is: ₹149.00.
L293D Dual Motor Driver Module (Up to 1~2 Amp)
L293D Dual Motor Driver Module (Up to 1~2 Amp)

Out of stock

-
+
Original price was: ₹120.00.Current price is: ₹85.00.

High and low level trigger options: It is low level trigger when jumper connect to LOW pin It is high level trigger when jumper connect to HIGH pin Package Includes 1pcs 5V 1-Channel Relay Module with Optocoupler H/L Level Trigger for Arduino.

 5V 1-Channel Relay Module with Optocoupler H/L Level Trigger for Arduino. using SMD Optocoupler isolation, driving ability, stable performance; trigger current 5mA;. the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;.

Technical Specifications:

  • Trigger current: 5mA;
  • Operating voltage: 5V;
  • The module uses genuine quality relay, normally
  • Open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
  • Trigger: The module can be high or low by a jumper setting
  • Using SMD Optocoupler isolation, driving ability, stable performance;
  • Fault-tolerant design, even if the control line is broken, the relay will not operate;
  • The power indicator (green), the relay status indicator (red)
  • The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
  • Module size: 50mm*26mm*18.5mm (L*W*H)

Module interface:

  • DC+: positive power supply (VCC)
  • DC-: negative power supply (GND)
  • IN: can be high or low level control relay

Relay outputs:

  • NO: normally open relay interface
  • COM: Common Interface Relays
  • NC: normally closed relay interface

Package Includes:

  • 1 Piece- 1 Channel 5V With H/L Level Trigger Relay Module With Optocoupler

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab
