BTS7960 43A H-Bridge High-Power Motor Driver Module

BTS7960 43A H-Bridge High-Power Motor Driver Module

Original price was: ₹449.00.Current price is: ₹349.00.

SKU : 13-ERDRV017

STOCK: 14 (WooHoo!) Available

Quick Review:

  • Overvoltage lockout.
  • Undervoltage shut down.
  • Driver circuit with logic level inputs.
  • Adjustable slew rates for optimized EMI.
  • PWM capability of up to 25 kHz combined with active freewheeling.
  • Switched mode current limitation for reduced power dissipation in overcurrent.
  • Status flag diagnosis with current sense capability.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

14 in stock

Select Below Products to Add Together:
BTS7960 43A H-Bridge High-Power Motor Driver Module
This item: BTS7960 43A H-Bridge High-Power Motor Driver Module

14 in stock

Original price was: ₹449.00.Current price is: ₹349.00.
Original price was: ₹449.00.Current price is: ₹349.00.
1 Channel 5V With H/L Level Trigger Relay Module With Optocoupler
1 Channel 5V With H/L Level Trigger Relay Module With Optocoupler

7 in stock

-
+
Original price was: ₹165.00.Current price is: ₹149.00.
Add to Wishlist

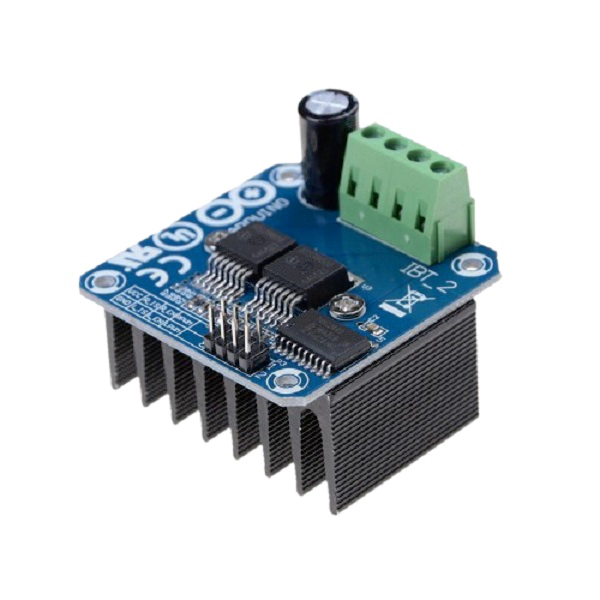

BTS7960 43A H-Bridge High-Power Motor Driver Module

The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module is; a fully integrated high current H bridge for motor drive applications using the BTS7960 high current half bridge. the BTS7960 is part of the No valith ICTM family. This containing one p-channel high side MOSFET and one n-channel low side MOSFET; with an integrated driver IC in one package. Due to the p-channel high side switch; the need for a charge pump is eliminated thus minimizing EMI.

Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs; diagnosis with current sense, slew rate adjustment; dead time generation and protection against over temperature, overvoltage, under voltage; overcurrent, and short circuit.
The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module provides; a cost-optimized solution for protected high current PWM motor drives with very low board space consumption.

Technical Specifications:

  • Voltage Rating (V): 6 to 27VDc
  • Current Rating (A):43
  • Max. Current (A): 43
  • Logic Voltage (V): 3.3-5
  • Duty cycle: 0 – 100%
  • Path resistance (Ω): 16 mΩ at 25°C
  • Quiescent Current (uA): 7 µA at 25°C
  • Pulse Frequency (KHz): 25
  • Overvoltage lockout.
  • Under voltage shut down.
  • Driver circuit with logic level inputs.
  • Adjustable slew rates for optimized EMI.
  • PWM capability of up to 25 kHz combined with active freewheeling.
  • Switched mode current limitation for reduced power dissipation in overcurrent.
  • Status flag diagnosis with current sense capability.
  • Over temperature shut down with latch behavior.
  • 74AHC244 Schmitt-trigger Octal buffer/line driver for ESD protection (Inputs accepts voltages higher than VCC).

Input port:

  1. RPWM: forward level or PWM signal input, active high.
  2. LPWM: Reverse level or PWM signal input, active high.
  3. R_EN: forward drive enable input, high-level enable, low level off.
  4. L_EN: Reverse drive enable input, high-level enable, low level off.
  5. R_IS: forward drive current alarm output.
  6. L_IS: Reverse drive current alarm output.
  7. VCC: +5 V power output, 5V power supply connection with the microcontroller.
  8. GND: signal common low end.

Package Includes:

  • 1 Piece- BTS7960 43A H-Bridge High-Power Motor Driver Module
Weight 67 g
Dimensions 50 × 50 × 43 mm
