Waterproof Ultrasonic Obstacle Sensor, Reversing Radar Sensor with Separate Probe

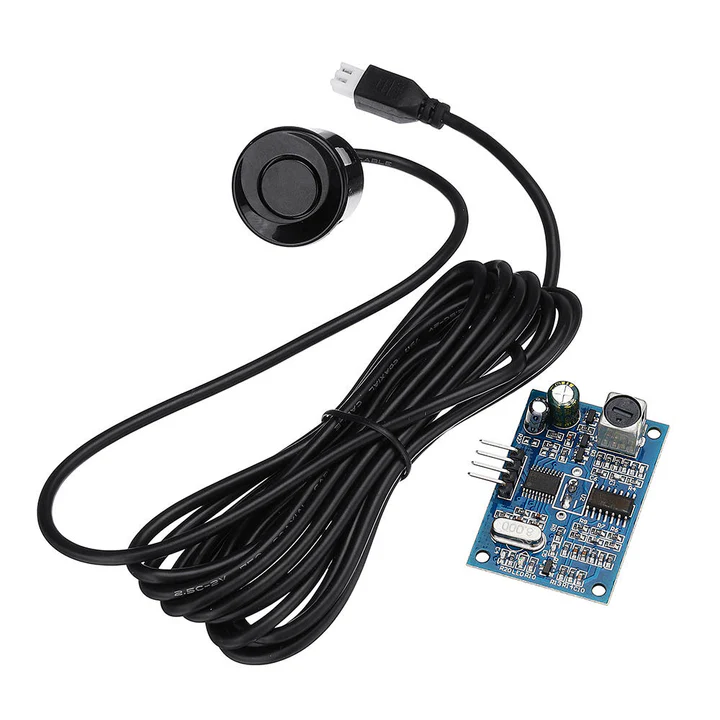

This waterproof ultrasonic sensor is designed for reliable performance in harsh environments and immediately stands out for its industrial-grade construction. It delivers stable distance measurement, supports long-range detection, and remains highly accurate even when exposed to moisture. Since users frequently compare ultrasonic sensor rate options and want clarity on ultrasonic sensor working principles, this model offers an ideal balance of durability and precision while keeping installation simple. This waterproof ultrasonic sensor includes a separate probe, allowing you to position the sensing element away from the control board for better flexibility. With a measurement capability ranging from 250 mm to 4500 mm, it is highly suitable for automotive reversing systems, robotics projects, and industrial monitoring applications. Moreover, because many users evaluate ultrasonic sensor rate before choosing a product, this module provides excellent value given its stable output and dependable long-term use. Its design is similar to popular automotive modules, and this waterproof ultrasonic sensor performs exceptionally well in rain, humidity, and dusty surroundings. Interfacing it is easy—Arduino, industrial controllers, and embedded systems can all use the same simple trigger-and-echo methodology. Additionally, learners and engineers exploring ultrasonic sensor working mechanisms will find this module convenient for experimenting with accurate ranging. Compared to regular distance modules, this waterproof ultrasonic sensor offers much better protection and operational stability. For environments where reliability matters more than the ultrasonic sensor rate alone, this unit offers consistent output and strong anti-jamming capabilities. It behaves almost identically to an HC-SR04 but with the added advantage of a sealed probe. As beginners and professionals study ultrasonic sensor working behavior, this module provides clear, predictable results suitable for both research and development. With simple high-level trigger input and a responsive echo output, this waterproof ultrasonic sensor continually measures distance through repeated cycles. This makes it ideal for dynamic applications such as moving platforms, automated navigation, and security setups. The robust design ensures long-term use in tough environmental conditions.

Key Features:

• High Accuracy: Provides accurate distance measurements with a range of 2cm to 400cm, making it ideal for precise object detection.
• Easy Integration: Simple to connect with microcontrollers, Arduino, Raspberry Pi, and other development platforms using standard pins.
• Wide Range of Applications: Suitable for robotics, obstacle avoidance systems, distance measurement, and level sensing.
• Compact Design: Lightweight and compact, this module can be easily incorporated into various projects without taking up much space.
• Low Power Consumption: Designed for low power consumption, making it suitable for battery-operated devices.

Technical Specifications:

• Sensor Type: Ultrasonic
• Voltage: 5V
• Current: 30mA (Operating), 5mA (Static)
• Range: 25cm–4.5m
• Resolution: 0.5cm
• Temperature: -10°C to +70°C
• Cable Length: 2.5m
• Small size, easy to use
• Low voltage and power consumption
• High accuracy
• Strong anti-jamming
• Waterproof probe for harsh environments
• Dimensions: 41mm × 28mm × 12.5mm
• Weight: 50g

Applications :

• Horizontal Distance: Ideal for automation and positioning systems.
• Obstacle Avoidance: Widely used in robotics and control systems.
• Traffic Control: Effective in detection and flow management.
• Security and Industrial Control: Ensures safety in industrial environments.
• Artificial Intelligence and Research: Useful in advanced sensing projects.

Package Includes:

• 1 Piece-Waterproof Ultrasonic Obstacle Sensor, Reversing Radar Sensor with Separate Probe
