MX1508 Dual H Bridge DC PWM Stepper Motor Driver
Original price was: ₹99.00.₹79.00Current price is: ₹79.00.
SKU : 13-ERDRV021STOCK: 10 (WooHoo!) Available
Quick Review:
- Supply Voltage: 2V-10V
- Signal Input Voltage: 1.8V-7V
- Single Operating Current: 1.5A
- Peak Current: Up to 2.5A
- Low Standby Current: <0.1uA
- Mounting Hole Diameter: 2mm
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
10 in stock
10 in stock
10 in stock

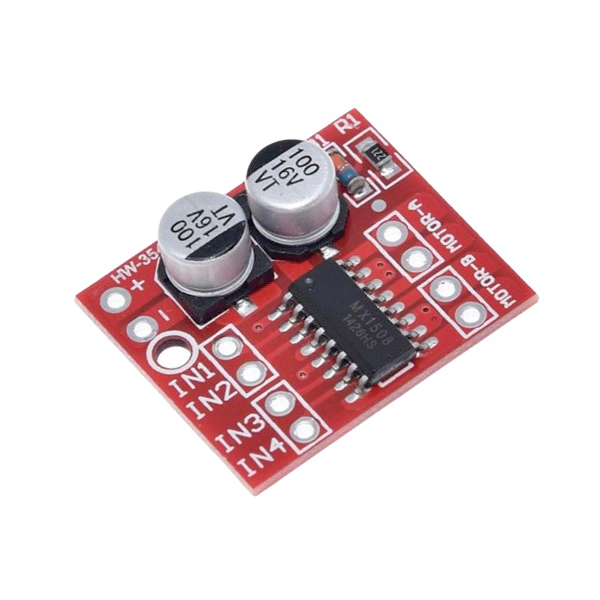

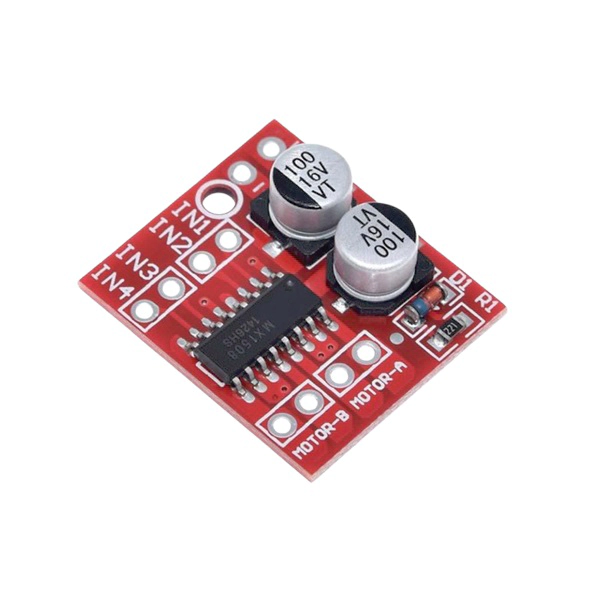

MX1508 Dual H Bridge DC PWM Stepper Motor Driver
The MX1508 Dual H-Bridge DC Motor Driver is a compact and cost-effective module designed for controlling two DC motors or a single 4-wire, 2-phase stepper motor. It is widely used in applications such as battery-powered smart cars, toy vehicles, and robotics projects.
Technical Specifications:
- Motor Control: Capable of driving two DC motors or one 4-wire, 2-phase stepper motor.
- Voltage Range: Operates with a supply voltage between 2V and 10V DC.
- Signal Input Voltage: Accepts control signals ranging from 1.8V to 7V.
- Current Handling:
- Continuous operating current: 1.5A per channel.
- Peak current: Up to 2.5A per channel.
- Protection Features:
- Built-in thermal shutdown protection with hysteresis.
- Integrated flyback diodes to handle reverse EMF voltage spikes.
- Low standby current consumption (less than 0.1µA).
- Design:

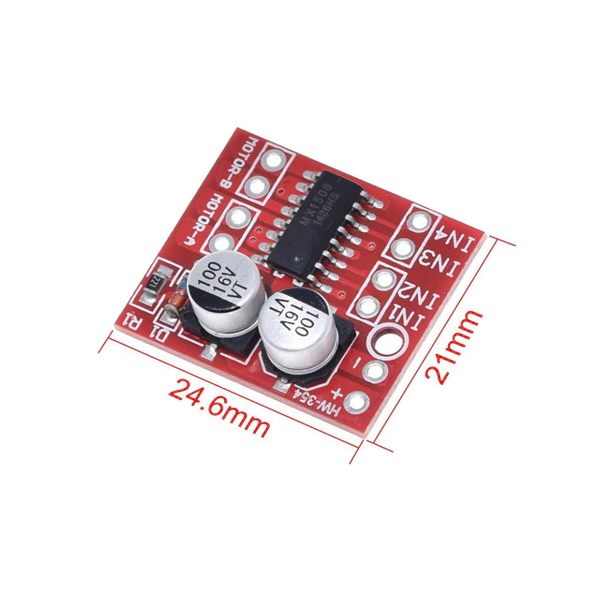

- Compact size: Approximately 24.7mm x 21mm x 5mm.
- Utilizes both P-channel and N-channel MOSFETs in a dual H-bridge configuration.
- PWM Control: Supports Pulse Width Modulation (PWM) for speed regulation of motors.
- Additional Features:
- Built-in common conduction circuit to prevent malfunction when input pins are left floating.
- Suitable for applications requiring bidirectional motor control.
Package Includes:
- 1 Piece- MX1508 Dual H Bridge DC PWM Stepper Motor Driver
| Weight | 4 g |
|---|---|
| Dimensions | 25 × 20 × 6 mm |
| 85030090 | 85030090 |
