Sale!

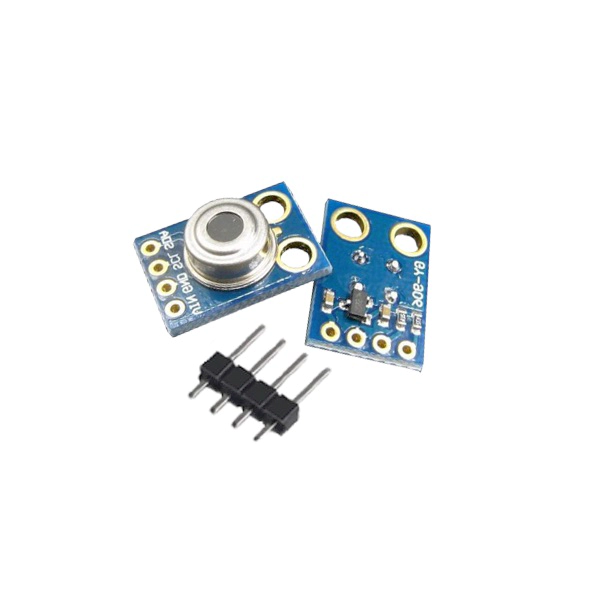

MLX90614-(GY-906) Infrared Temperature Sensor

MLX90614-(GY-906) Infrared Temperature Sensor

Original price was: ₹1,225.00.Current price is: ₹1,199.00.

SKU : 15-ERTAH006

STOCK: (Oh! no) Out of stock

Quick Review:

  • Input: 3V
  • Sensing range: 25 CM -60 cm
  • Field of view: 5 degrees
  • Sensor temperature: -40+85C
  • Easy to integrate

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

If You are wandering to Build a Device Which is used to measure the temperature of a hot object like machines, flames, hot iron, device CPU. Then this Sensor is Needed for you.

The MLX90614 ESF is an Infra-Red thermometer for non-contact temperature measurements.  Both the IR-sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.

The user can configure the digital output to be PWM. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20 to 120 °C, with an output resolution of 0.14 °C.

Technical Specifications:

  • Input: 3V
  • Sensing range: 25 CM -60 cm
  • Field of view: 5 degrees
  • Sensor temperature: -40+85C
  • Easy to integrate
  • Mounted on a breakout board with two types of pins
  • 10k Pull up resistors for the I2C interface with optional solder jumpers
  • Factory calibrated in temperature range:
    • -40+125°C for sensor temperature
    • -70+380°C for object temperature
  • High accuracy of 0.5°C over wide temperature range (+50°C for both) High (medical) accuracy calibration
  • Measurement resolution of 0.02°C
  • Single and dual zone versions
  • SMBus compatible digital interface
  • Customizable PWM output for continuous reading
  • Different package options for applications and measurements versatilit
Applications:
  • High precision non-contact temperature measurements
  • Automotive blind angle detection
  • Multiple zone temperature control – up to 127 sensors
  • Thermal relay / alert
  • Movement detection
  • Livestock monitoring
  • Body temperature measurement

Package Includes:

  • 1 Piece– MLX90614-(GY-906)Infrared Temperature Sensor
