-4%

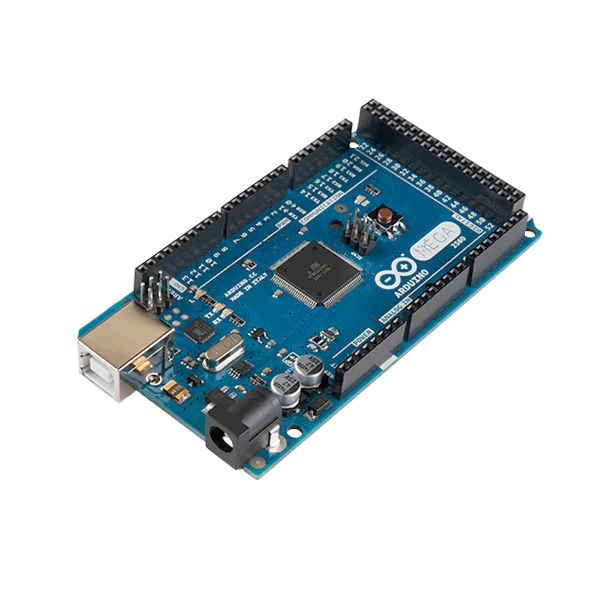

Arduino Mega 2560 R3 Microcontroller Board- CP2102 (Without Cable)

Arduino Mega 2560 R3 Microcontroller Board- CP2102 (Without Cable)

Original price was: ₹1,349.00.Current price is: ₹1,299.00.

SKU : 17-ERDLP007

STOCK: (Oh! no) Out of stock

Quick Review:

  • Microcontroller: ATmega2560.
  • Operating Voltage: 5V.
  • Input Voltage (recommended): 7-12V.
  • Digital I/O Pins: 54 (of which 15 provide PWM output).
  • Analog Input Pins: 16.
  • Flash Memory: 256 KB of which 8 KB used by bootloader.
  • SRAM: 8 KB.
  • EEPROM: 4 KB.
  • Clock Speed: 16 MHz.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

The Arduino Mega 2560 R3 is an open source precise microcontroller board Successor to the Arduino Mega based on the ATmega2560 SMD chip. The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.

This Board has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Using the board is also very easy, simply connect it to a computer with a USB cable or power it with DC adapter or battery to get started. The Mega 2560 R3 board is compatible with most shields designed for Arduino/ Genuino Uno and the former boards Duemilanove or Diecimila.

Technical Specifications:

  • Microcontroller: ATmega2560
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-20V
  • Digital I/O Pins: 54 (of which 15 provide PWM output)
  • Analog Input Pins: 16
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 256 KB of which 8 KB used by boot loader
  • SRAM: 8 KB
  • EEPROM: 4 KB
  • Clock Speed: 16 MHz
  • USB Host Chip: MAX3421E
  • Model: Clone
  • Length:101.98mm/4.01in
  • Width:53.63mm/2.11in
  • Height:15.29mm/0.60in

Package Includes:

  • 1 Piece- Arduino Mega 2560 R3 Microcontroller Board (Without Cable)
Weight 60 g

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab

Reviews

There are no reviews yet.

Be the first to review “Arduino Mega 2560 R3 Microcontroller Board- CP2102 (Without Cable)”

Your email address will not be published. Required fields are marked *

SKU: 17-ERDLP007 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , Brand:
