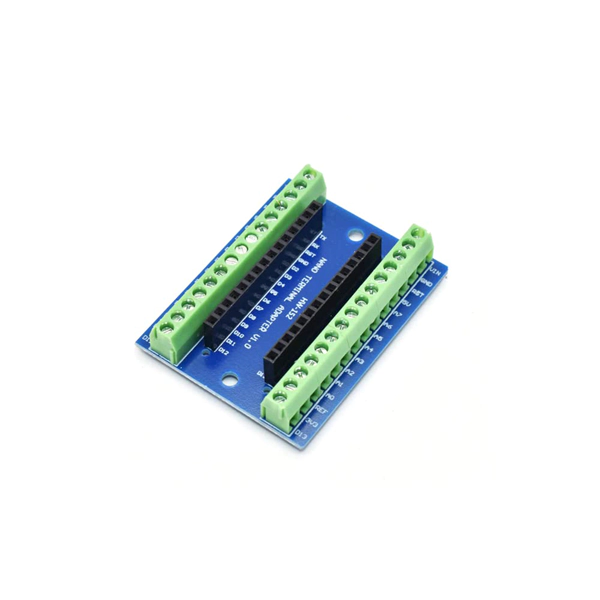

Nano Terminal Adapter for the Arduino Nano V3.0 AVR ATMEGA328P-AU Module Board

The Nano IO Expansion Shield is specifically designed to provide an easy and reliable connection interface for the Arduino Nano. It expands all input and output pins of the Arduino Nano controller, allowing simple, clean, and trouble-free connections to external sensors, modules, and devices.

This compact Nano extension board breaks out all digital and analog pins, making wiring convenient for experiments, testing, and prototyping. Clearly labeled pin outputs help users quickly connect hook-up wires without soldering directly onto the Nano board.

The adapter is labeled for Arduino Nano V3.0, but it is also compatible with older Nano versions. Please note that in older versions, the A0–A7 analog pins are arranged in reverse order.

Technical Specifications

• Input Voltage(V): 3.3 ~ 5
• No. of Analog Pins: 8
• No. of PWM Pin: 6
• Compatible Board: Arduino Nano
• Microcontroller Support: ATmega328P
• Supply Voltage: 3 – 5 V
• Pin Type: Digital & Analog Breakout
• Compatible with Arduino Nano
• Supports ATmega328P microcontroller
• All digital and analog pins fully broken out
• Compact and lightweight design
• Strong anti-interference performance
• Convenient for wiring and experimentation
• Cost-effective IO expansion solution

Applications

• Arduino Nano prototyping
• Sensor and module interfacing
• Educational and training projects
• DIY electronics experiments
• Robotics and automation projects

Package Includes:

• 1 Piece– Nano Terminal Adapter for the Arduino Nano V3.0 AVR ATMEGA328P-AU Module Board
