37GB520 30RPM 12V High Torque DC Geared Motor

Original price was: ₹899.00.Current price is: ₹749.00.

SKU : ERGBM002

STOCK: 2 (WooHoo!) Available

Quick Review:

  • Voltage: 12V DC
  • Speed: 30 RPM
  • Shaft: D-type side
  • Motor Diameter: 37 mm
  • Motor Type: Brushed DC motor with speed reducer

Shipping: Usually delivered in 3-7 days.


Brand New || Best Quality || Skype and Video Support Available.


Need in Quantity? Let’s Talk!

Availability:

2 in stock

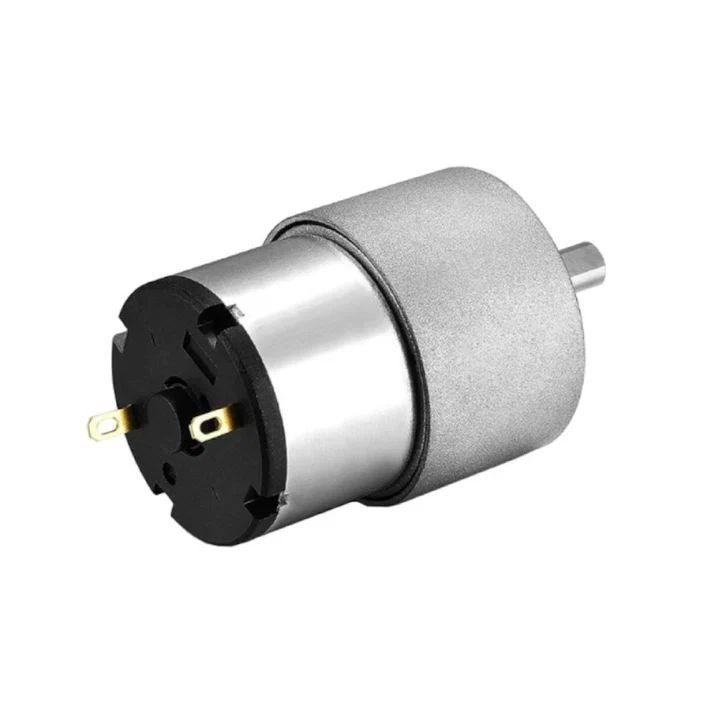

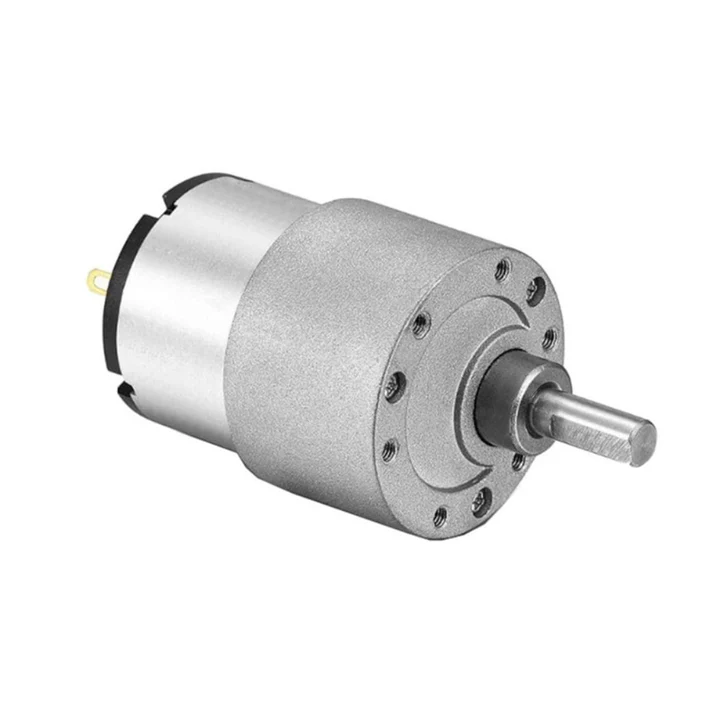

37GB520 30RPM 12V High Torque DC Geared Motor

The GB37 520 DC motor is a compact, high-torque, low-speed brushed DC motor with an integrated gear reducer. It operates at 12V and is designed to deliver a rotational speed of 12 RPM. This motor is capable of forward and reverse operation, making it suitable for various applications where precise control and durability are required.

Technical Specifications:

  • Reduction Ratio:810
  • Rated Voltage(DC): 12
  • No Load speed (RPM) : 30
  • No Load current (mA) : 150
  • Load Speed (RPM) : 9
  • Load current (A): 0.65
  • Load torque (kg. cm): 21
  • Load output power (W): 7.8
  • Stall Torque (kg. cm): 93
  • Stall Current (A): 2.4
  • Weight (g) : 170
  • Shaft type: Side D-type
  • Gearbox Length(mm): 29

Features:

  • Voltage: 12V DC
  • Speed: 30 RPM
  • Shaft: D-type side
  • Motor Diameter: 37 mm
  • Motor Type: Brushed DC motor with speed reducer
  • Forward and Reverse Operation: Allows for versatile applications that can change rotation direction.
  • High Torque: Designed to provide strong torque output despite its miniature size.
  • Compact Design: Ideal for use in space-constrained applications.

Applications:

  • Robotics: Ideal for driving wheels, arms, and other moving parts in small robots.
  • Automation Systems: Suitable for conveyor belts, automated doors, and other mechanized systems requiring precise movement.
  • Model Making: Perfect for model cars, planes, and other hobbyist projects that need reliable motor power.
  • Medical Devices: Can be used in small medical equipment requiring consistent and controlled motion.
  • DIY Projects: Great for custom electronics and DIY projects needing a compact motor with high torque.

Advantages:

  • High Torque Output
  • Low Speed for Precise Control
  • Compact Design
  • Bidirectional Operation
  • Easy Integration
  • Cost-Effective

Disadvantages

  • Brush Wear
  • Noise and Vibration
  • Limited Efficiency
  • Shorter Lifespan
  • Fixed Speed
  • Heat Generation

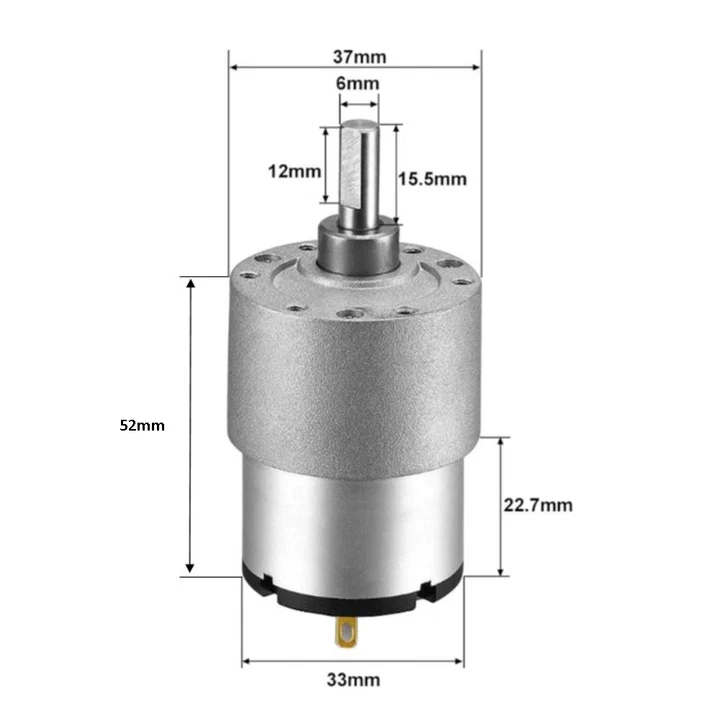

Physical Attribute

  • Motor Weight (g) : 170
  • Total Length:74.7 mm
  • Gearbox Diameter: 37 mm
  • Motor Diameter: 33 mm
  • Shaft Diameter: 6 mm
  • Shaft Length: 12 mm (main shaft)
  • Flat Side Length on Shaft: 5.5 mm

Package Includes:

  • 1 Piece– 37GB520 30RPM 12V High Torque DC Geared Motor
