Sale!

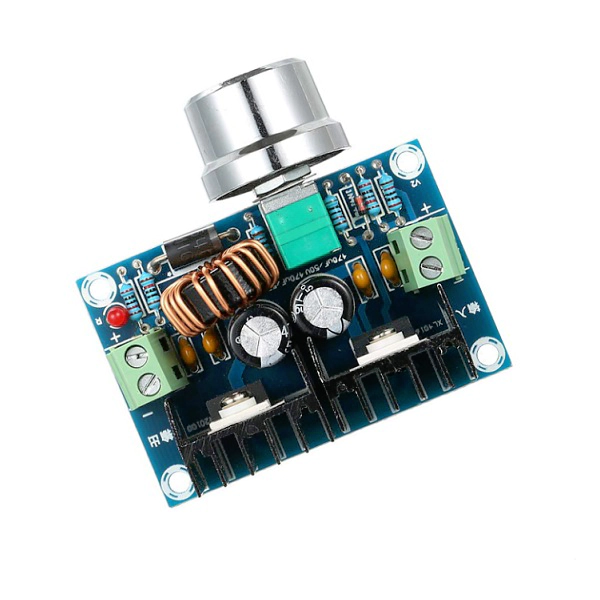

XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module

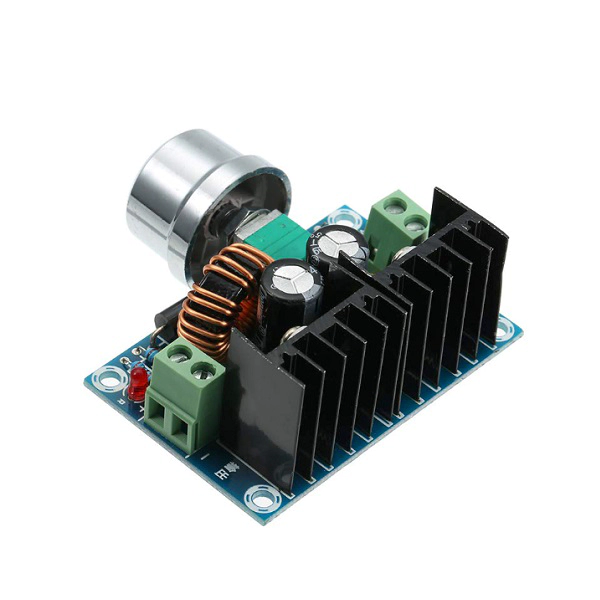

XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module - Image 2

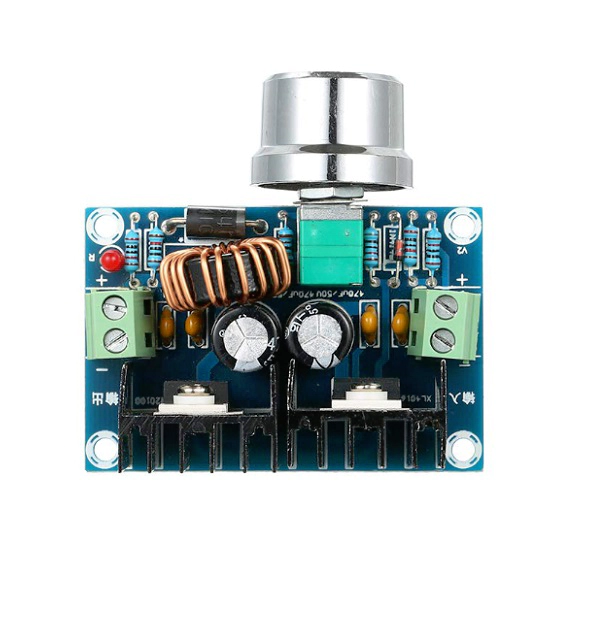

XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module - Image 3

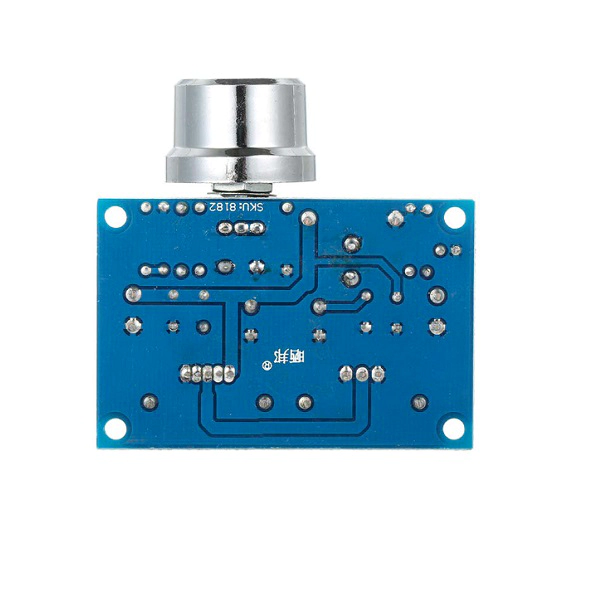

XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module - Image 4

XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module

Name: XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module
Brand: Generic
SKU: 73-ERCRG015
Availability: InStock

Original price was: ₹299.00.Current price is: ₹280.00.

SKU : 73-ERCRG015

STOCK: 1 (WooHoo!) Available

Quick Review:

Input Voltage: 8-36V DC
Output Voltage: 1.25-35V DC
Efficiency: 96%
Maximum Power: 200W

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Bulk Quantity? Let’s Talk!

Availability:

1 in stock

Select Below Products to Add Together:

XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module

This item: XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module

1 in stock

XL4015 5A DC-DC Step Down Adjustable Buck Converter Module

23 in stock

Add to Wishlist

XL4016E1 XH-M401 DC-DC Step Down Buck Converter Power Supply Module

The XL4016 is a 180 kHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 12A load with high efficiency, low ripple, and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An overcurrent protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.

Note: This Product is available in two different variants (XH-M401, HW-439 and HW 674) with the same working we will ship it randomly.

Applications:

LCD Monitor and LCD TV
Portable instrument power supply
Telecom / Networking Equipment

Technical Specifications:

Input Voltage (V): 8-36VDC
Output Voltage (V): 1.25 to 36
Conversion efficiency: 0.96
Load Regulation: ± 0.5%
Voltage regulation (U): ± 0.5%
PCB Size ( L x W ) mm: 60×40
Switching Frequency (KHz): 180 KHz
Wide 8V to 36V Input Voltage Range
Output Adjustable from 1.25V to 32V
High efficiency up to 96%
Built-in thermal shutdown function
Built-in current limit function
Built-in output short protection function
Excellent line and load regulation

Package Includes:

1 Piece–XL4016 DC-DC Step-Down Adjustable Buck Converter

Weight	18 g
Dimensions	100 × 80 × 30 mm
