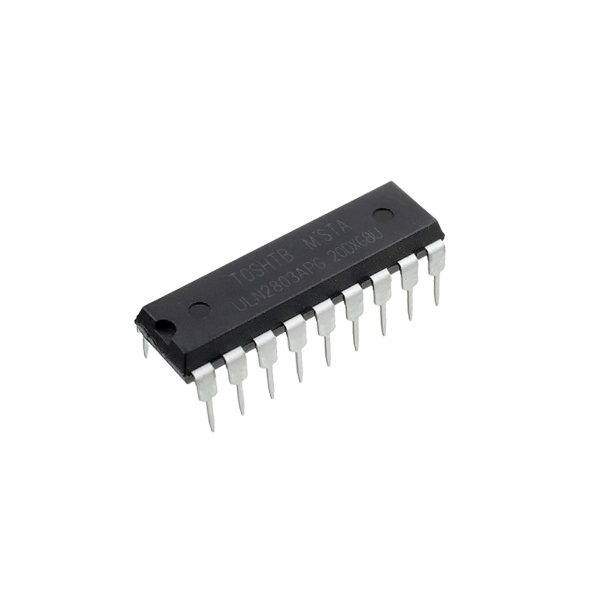

ULN2803 8 Darlington Transistor Arrays IC DIP-18 Package

ULN2803 8 Darlington Transistor Arrays IC DIP-18 Package

Original price was: ₹15.00.Current price is: ₹12.00.

SKU : 33-ERICS005

STOCK: 1 (WooHoo!) Available

Quick Review:

  • Package Type: DIP-18
  • Output Current (Per Channel): 500mA (max)
  • Output Voltage: Up to 50V
  • Input Voltage: TTL and CMOS compatible
  • Built-in Diodes: Protects against inductive kickback
  • Operating Temperature Range: -20°C to 85°C

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

1 in stock

The ULN2803 is a powerful and highly efficient Darlington transistor array IC, comprising eight NPN Darlington pairs in a convenient DIP-18 package. Each channel is capable of sinking up to 500mA, making the ULN2803 ideal for driving high-power loads such as relays, motors, LED displays, and more. The IC includes built-in flyback diodes to protect against voltage spikes, ensuring reliable and safe operation, especially when dealing with inductive loads.

Key Features:

  • Eight Darlington Transistor Arrays: Simplifies control of multiple high-power devices with a single IC.
  • High Output Current: Each channel can handle up to 500mA, supporting a wide range of loads.
  • High Voltage Support: Output voltage up to 50V, suitable for various industrial and automotive applications.
  • Integrated Flyback Diodes: Provides protection from inductive voltage spikes, perfect for driving motors and relays.
  • Standard DIP-18 Package: Easy to integrate and ideal for prototyping with breadboards or PCBs.

Technical Specifications:

  • Package Type: DIP-18
  • Output Current (Per Channel): 500mA (max)
  • Output Voltage: Up to 50V
  • Input Voltage: TTL and CMOS compatible
  • Built-in Diodes: Protects against inductive kickback
  • Operating Temperature Range: -20°C to 85°C

Applications:

  • Relay and solenoid drivers
  • Stepper motor controllers
  • LED and incandescent lamp drivers
  • Logic buffers for interfacing
  • Display drivers
  • Industrial automation circuits
  • Motor control systems

Why Choose the ULN2803 IC? The ULN2803 IC provides a simple and efficient way to control multiple high-current loads using low-power logic signals. It is widely used in industrial control systems, robotics, and LED displays. With its built-in protective features and versatile configuration, the ULN2803 is a must-have for reliable and robust load driving in your electronic projects.

Package Includes:

  • 1 Piece- ULN2803 8 Darlington Transistor Arrays IC DIP-18 Package
Weight 15 g

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
