Vibration Sensor Module Motion Sensor Module Vibration Switch SW-420
Original price was: ₹89.00.₹49.00Current price is: ₹49.00.
SKU : 64-ERVRS001STOCK: 7 (WooHoo!) Available
Quick Review:
- Operating Voltage (VDC): 3.3 ~ 5
- With bolt holes for easy installation
- Using a wide voltage LM393 comparator.
- Using SW-420 normally closed type vibration sensor.
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
7 in stock
7 in stock

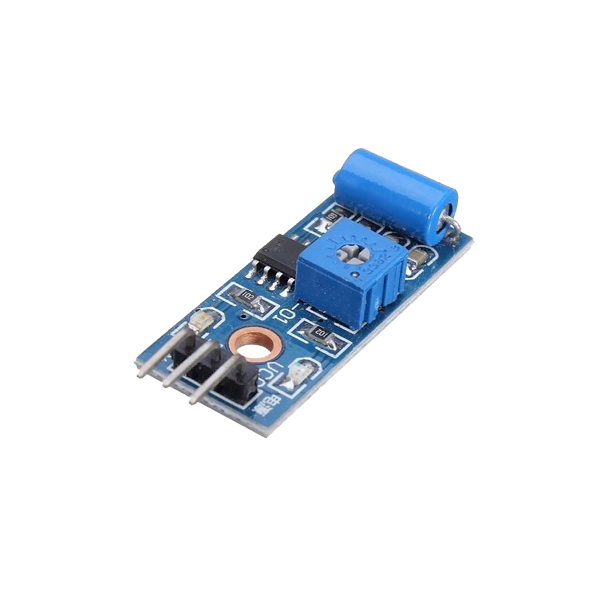

Vibration sensor module Motion sensor module vibration switch SW-420
Vibration sensor module SW-420 based on the vibration sensor SW-420 and Comparator LM393 to detect if there is any vibration that beyond the threshold. The threshold can adjust using an on-board potentiometer. When this no vibration, this module output logic LOW the signal indicates LED light, and vice versa.
If the module does not vibrate, the vibration switch was on the close state, the output of low output, the green indicator light. The product vibrates, vibration switches momentary disconnect, the output is driven high, the green light does not shine.
The output can connect to the microcontroller, which to detect high and low level; so as to detect whether the environment exists vibration, play a role in the alarm.
Technical Specifications:
- Operating Voltage (VDC): 3.3 ~ 5
- With bolt holes for easy installation
- Using a wide voltage LM393 comparator.
- Using SW-420 normally closed type vibration sensor.
- Comparator output, clean signal, good waveform, strong driving ability, >15mA.
Package Includes:
- 1 Piece– Vibration sensor module, Motion sensor module, vibration switch SW-420
| 90319000 | 90319000 |
|---|
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
