Sale!
NEO-6M GPS Module

NEO-6M GPS Module

Original price was: ₹549.00.Current price is: ₹349.00.

SKU : 70-ERGPS001

STOCK: 10 (WooHoo!) Available

Quick Review:

  • Operating Voltage: 3.3V to 5V (can be powered directly by an Arduino or similar development boards).
  • Current Consumption: Typically around 50mA (varies depending on signal conditions).
  • Interface: UART (RX/TX), compatible with serial communication.
  • Output Format: Standard NMEA sentences.
  • Update Rate: 1Hz (can be increased with advanced configurations).
  • Cold Start Time: Typically 30 seconds.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Bulk Quantity? Let’s Talk!

Availability:

10 in stock

Select Below Products to Add Together:
NEO-6M GPS Module
This item: NEO-6M GPS Module

10 in stock

Original price was: ₹549.00.Current price is: ₹349.00.
Original price was: ₹549.00.Current price is: ₹349.00.
Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)
Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)

Out of stock

-
+
Original price was: ₹1,850.00.Current price is: ₹1,648.00.
Add to Wishlist

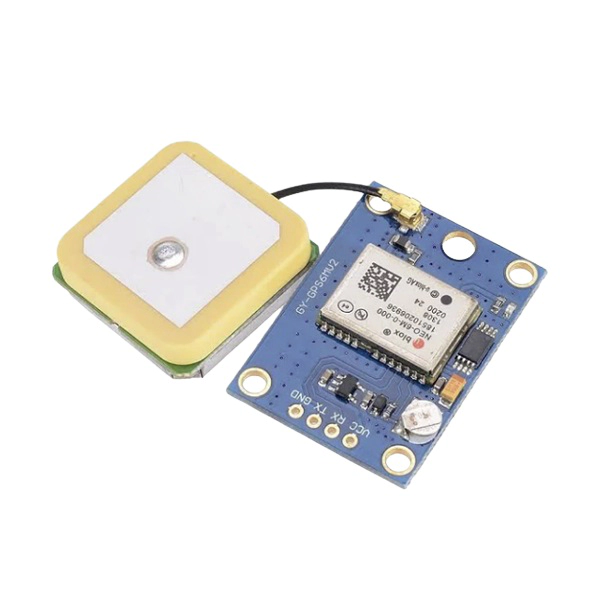

The NEO-6M GPS Module is a compact and high-performance GPS receiver module based on the Ublox NEO-6M chipset. It is widely used in navigation, tracking, and location-based projects, providing reliable and accurate GPS data for a variety of applications, such as robotics, drones, vehicle tracking, and IoT projects.

Key Features:

  • GPS Receiver: Uses the Ublox NEO-6M GPS chip, which is highly accurate and provides real-time positioning data.
  • High Accuracy: Provides 2.5 meters (CEP50) accuracy under good signal conditions.
  • Update Rate: Capable of providing 1 Hz (1 update per second) for real-time tracking of position, speed, and time.
  • Built-in Antenna: The module comes with a built-in patch antenna, although an external antenna can be connected for better signal reception, especially in weak signal environments.
  • Serial Communication: Communicates via UART (Universal Asynchronous Receiver Transmitter), which is compatible with microcontrollers like Arduino, Raspberry Pi, and other development boards.
  • Voltage Range: Operates within a voltage range of 3.3V to 5V, making it suitable for a wide range of microcontroller systems.
  • Low Power Consumption: Designed for efficient power consumption, making it ideal for battery-powered projects.
  • Cold Start: Can achieve a cold start in about 30 seconds and a hot start in around 1 second when it has a previous satellite data stored.
  • Position, Speed, and Time Data: Provides longitude, latitude, altitude, speed, and time (UTC), which can be used in various navigation and tracking applications.

How It Works:

  • The NEO-6M GPS Module uses a network of satellites in orbit to determine the precise location of the receiver.
  • The module receives signals from multiple satellites, calculates the time it took for the signals to reach the receiver, and uses trilateration to compute the latitude, longitude, altitude, and speed.
  • The GPS module communicates with external devices (e.g., microcontrollers) via UART, sending GPS data in a standard format, usually NMEA sentences (e.g., GPGGA, GPRMC, etc.).
  • The module outputs data such as:
    • Latitude and Longitude: Position of the GPS receiver on Earth.
    • Altitude: The height above sea level.
    • Speed: The current speed of the receiver (in knots, km/h, or mph).
    • UTC Time: Current time, as determined by the GPS satellites.

Technical Specifications:

  • Operating Voltage: 3.3V to 5V (can be powered directly by an Arduino or similar development boards).
  • Current Consumption: Typically around 50mA (varies depending on signal conditions).
  • Interface: UART (RX/TX), compatible with serial communication.
  • Output Format: Standard NMEA sentences.
  • Update Rate: 1Hz (can be increased with advanced configurations).
  • Cold Start Time: Typically 30 seconds.
  • Hot Start Time: Typically 1 second.

Module Features:

  • Built-in Patch Antenna: For standard applications, but you can add an external antenna for better reception.
  • Status Indicator: A built-in LED shows the status of GPS reception (flashing indicates the GPS signal is being acquired).
  • Compact Size: Small and lightweight, ideal for integration into embedded systems and portable projects.
  • Easy to Interface: With Arduino, Raspberry Pi, and other microcontrollers using UART.

The NEO-6M GPS Module is an affordable and highly reliable GPS receiver that is ideal for a wide range of navigation, tracking, and location-based applications. Its compatibility with Arduino, Raspberry Pi, and other microcontrollers makes it a great choice for DIY projects, robotics, and other GPS-based systems.

Applications:

  • Navigation Systems: Ideal for use in autonomous vehicles, robots, and drones for position tracking and real-time navigation.
  • Location Tracking: Used in tracking devices for personal or vehicle tracking.
  • Mapping Projects: Useful for creating maps, geographical data collection, and land surveying.
  • IoT Projects: Employed in various Internet of Things (IoT) applications where real-time location tracking is needed.
  • Weather Stations: Can be integrated into weather stations for altitude and location-based data collection.
  • Time Synchronization: Can be used in systems that require accurate time synchronization based on GPS signals (e.g., time servers).

Package Includes:

  • 1 Piece-NEO-6M GPS Module
