64-Bit WS2812B WS2812 5050 RGB LED Full Color Module Board

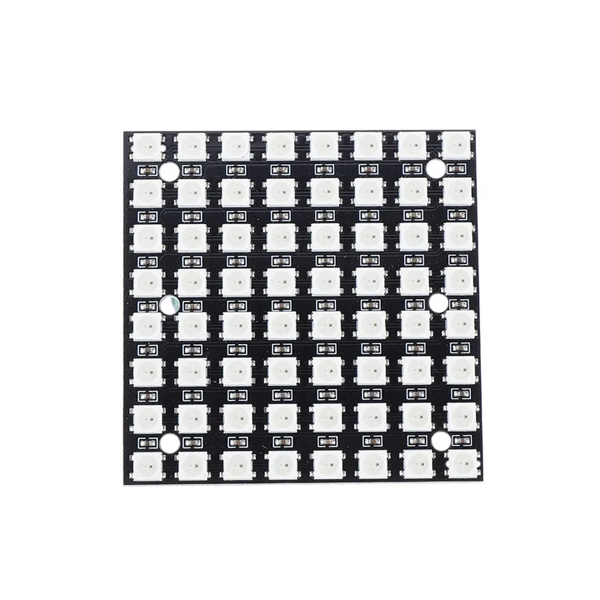

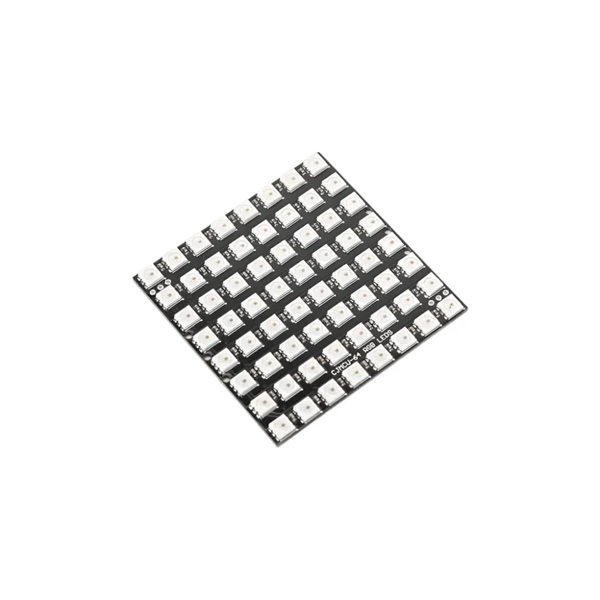

CJMCU 64 Bit 8×8 RGB LED Driver Development Board is a large board with 64 WS2812 RGB LEDs arranged in an 8×8 matrix. Each LED is capable of drawing as much as 60mA (at peak brightness the matrix can draw just over 3.5 Amps at 5 Volts), this adds up so it is suggested to use a 5V 2A power supply. For most users, you’ll see about 1-2A of current per panel.

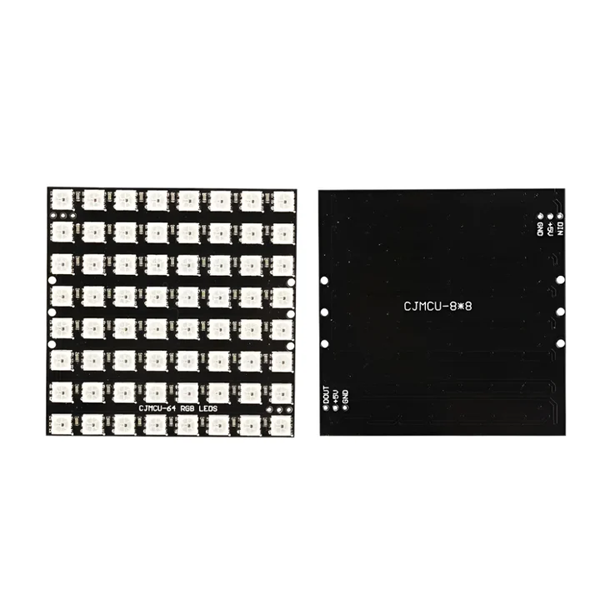

There are two 3-pin connection ports to the wiring board. Solder wires to the input port and provide 5VDC to the +5V and ground pins, then connect the DIN pin to your microcontroller and make a common ground from the 5V power supply to the microcontroller/Arduino.

Additionally, you can chain as many panels together as you’d like. For the second panel, connect the DIN connection to the first panel’s DOUT, connect the ground pins, and power with 5V. It should be noted that after four or more panels you may run low on RAM if you’re using an Arduino Uno and you may need a 5V 10A power supply for so many of these!

Every stick is equipped with a single data line with a very timing-specific protocol requiring a real-time micro-controller with an 8MHz or faster processor such as an AVR, Arduino, PIC, etc. There are solder pads on the back for connecting wires or breadboard pins and two mounting holes for securing this board to many different surfaces.

Technical Specifications

• Number of LEDs: 64
• LED color: RGB
• Operating voltage: 5 V
• Shape: RGB LED Square
• Very powerful LED light
• Chipset: WS2812 (Neopixel compatible)
• Can be soldered to conductive thread or wire
• Flexible RGB Matrix with Durable Backing
• 256 Brightness Levels Per Pixel
• Bendable for Curved Surfaces
• Low Power Consumption (5V)
• Easy 3-Pin Connection
• High-Quality, Long-Lasting Performance

Applications :

• Dynamic Displays: Creates colorful animations and visual effects.
• Arduino & DIY Projects: Ideal for creative LED control and programming.
• Smart Home Lighting: Customizable ambient lighting solutions.
• Wearable Tech: Flexible RGB lighting for fashion and accessories.

Package Includes:

• 1 Piece– Nano Terminal Adapter for the Arduino Nano V3.0 AVR ATMEGA328P-AU Module Board
