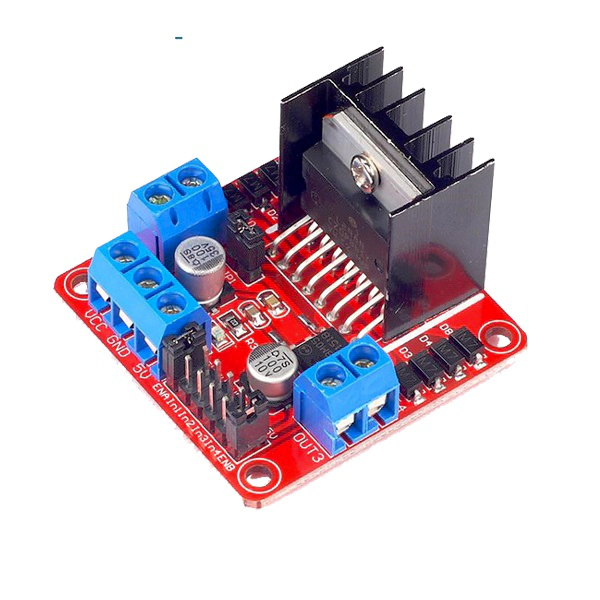

L298N Dual Motor Driver Module (Up to 1~2 Amp)
Original price was: ₹175.00.₹149.00Current price is: ₹149.00.
Quick Review:
- Driving No Of Motor : 2
- Control chip: L298N
- Logical voltage: 5V
- Drive voltage: 5V – 35V
- Logical current: 0mA – 36mA
- Drive current: 2A(MAX single bridge)
- Storage temperature: -20°C to +135°C
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
37 in stock
37 in stock
15 in stock
Using L298N as the control chip, the module has such characteristics as strong driving ability, low calorific value, and strong anti-interference ability. This module can use built-in 78M05 for electric work via a driving power supply part. But to avoid the damage of the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage. Using a large capacity filter capacitor, this module can follow current to protect diodes, and improve the reliability.
The L298N is an integrated monolithic circuit in a 15-lead multi-watt and PowerSO20 packages. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic level sand drive inductive loads such as relays, solenoids, DC and stepping motors. Two enable inputs are provided to enable or disable the device independently of the input signals. The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the connection of an external sensing resistor. An additional Supply input is provided so that the logic works at a lower voltage.
Technical Specifications:
- L298N Double H Bridge Motor Driver Module
- Control chip: L298N
- Logical voltage: 5V
- Drive voltage: 5V – 35V
- Logical current: 0mA – 36mA
- Drive current: 2A(MAX single bridge)
- Storage temperature: -20°C to +135°C
- Max power: 25W
- Size: 43 x 43 x 27mm
Package Includes:
- 1 Piece- L298N Dual Motor Driver Module (Up to 1~2 Amp)
| Weight | 24 g |
|---|---|
| Dimensions | 44 × 44 × 29 mm |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
