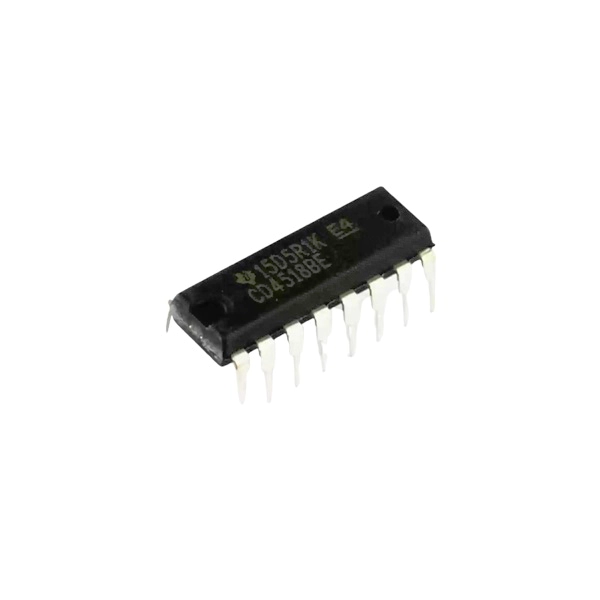

CD4518 Dual BCD Up Counter IC DIP-16 Package

CD4518 Dual BCD Up Counter IC DIP-16 Package

Original price was: ₹69.00.Current price is: ₹49.00.

SKU : 33-ERICS030

STOCK: 30 (WooHoo!) Available

Quick Review:

  • Medium-speed operation – 6-MHz typical clock frequency at 10 V
  • Positive- or negative-edge triggering
  • Synchronous internal carry propagation
  • 100% tested for quiescent current at 20 V

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

30 in stock

Select Below Products to Add Together:
CD4518 Dual BCD Up Counter IC DIP-16 Package
This item: CD4518 Dual BCD Up Counter IC DIP-16 Package

30 in stock

Original price was: ₹69.00.Current price is: ₹49.00.
Original price was: ₹69.00.Current price is: ₹49.00.
74LS47 BCD to 7-Segment Decoder/Driver IC (7447 IC) DIP-16 Package
74LS47 BCD to 7-Segment Decoder/Driver IC (7447 IC) DIP-16 Package

30 in stock

-
+
Original price was: ₹99.00.Current price is: ₹69.00.
Add to Wishlist

CD4518 consist of two identical, internally synchronous 4-stage counters. The counter stages are D-type flip-flops having interchangeable CLOCK and ENABLE lines for incrementing on either the positive-going or negative-going transition. For single-unit operation the ENABLE input is maintained high and the counter advances on each positive-going transition of the CLOCK. The counters are cleared by high levels on their RESET lines. The counter can be cascaded in the ripple mode by connecting Q4 to the enable input of the subsequent counter while the CLOCK input of the latter is held low. The CD4518  types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).

Technical Specifications:

  • Medium-speed operation – 6-MHz typical clock frequency at 10 V
  • Positive- or negative-edge triggering
  • Synchronous internal carry propagation
  • 100% tested for quiescent current at 20 V
  • Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
  • Noise margin (over full package-temperature range):
    • 1 V at VDD = 5 V
    • 2 V at VDD = 10 V
    • 2.5 V at VDD = 15 V
  • 5-V, 10-V, and 15-V parametric ratings
  • Standardized, symmetrical output characteristics
  • Meets all requirements of JEDEC Tentative Standard No. 13B, “Standard Specifications for Description of ’B’ Series CMOS Devices”
  • Applications
    • Multistage synchronous counting
    • Multistage ripple counting
    • Frequency dividers

Package Includes:

  • 1 Piece- CD4518 Dual BCD Up Counter IC DIP-16 Package
Weight 2 g
