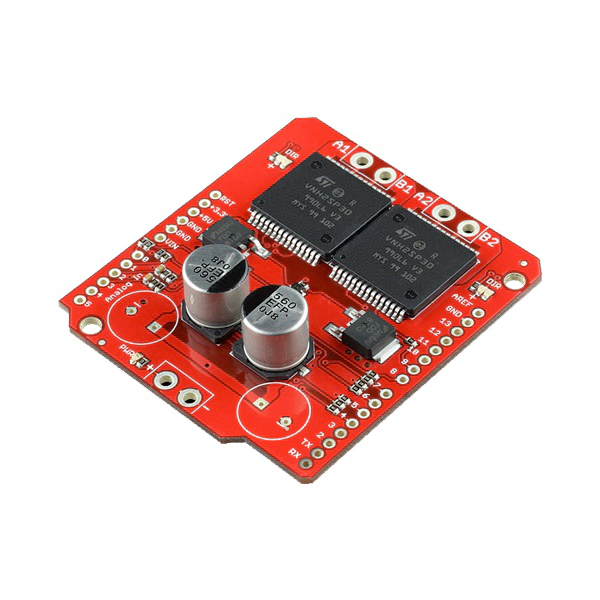

Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)
Original price was: ₹1,850.00.₹1,648.00Current price is: ₹1,648.00.
Quick Review:
- Voltage Range: 5.5V – 16V
- Maximum Current rating: 30A
- Practical Continuous Current: 14 A
- MOSFET on-resistance: 19 mΩ (per leg)
- Maximum PWM frequency: 20 kHz
- Current sense output proportional to motor current
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
Out of stock
VNH2SP30 is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high side driver and two low side switches. The high side driver switch is designed using the ST Microelectronics well-known and proven proprietary VI Power M0 technology which permits efficient integration on the same die of a true Power MOSFET with an intelligent signal/protection circuitry. The VIN and motor out are pitched for 5mm screw terminals, making it easy to connect larger gauge wires. INA and INB control the direction of each motor, and the PWM pins turn the motors on or off. For the VNH2SP30, the current sense (CS) pins will output approximately 0.13 volts per amp of output current.
Technical Specifications:
- Voltage Range: 5.5V – 16V
- Maximum Current rating: 30A
- Practical Continuous Current: 14 A
- MOSFET on-resistance: 19 mΩ (per leg)
- Maximum PWM frequency: 20 kHz
- Current sense output proportional to motor current
- Thermal Shutdown
- Under voltage and Overvoltage shutdown
Package Includes:
- 1 Piece- Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)
- 1 Piece-Burg strip
| Weight | 24 g |
|---|---|
| Dimensions | 68 × 53 × 12 mm |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
