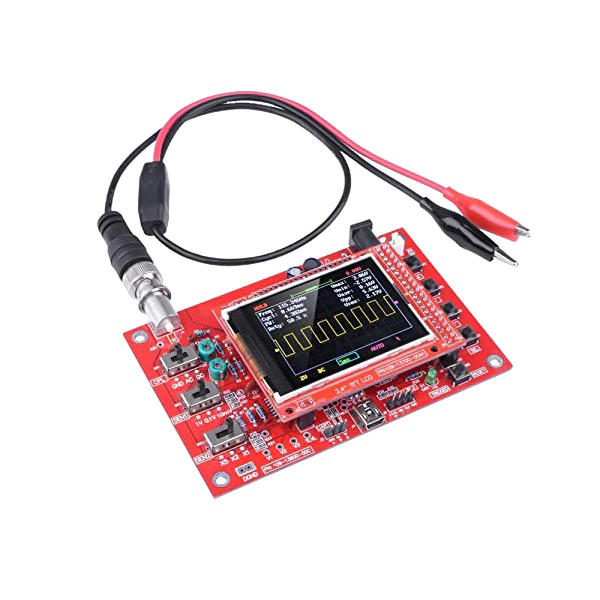

DSO138 2.4 inch TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Set Soldered

DSO138 2.4 inch TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Set Soldered

Original price was: ₹1,649.00.Current price is: ₹1,449.00.

SKU : 65-ERTFT001

STOCK: 2 (WooHoo!) Available

Quick Review:

  • Input Supply Voltage (VDC) : 9
  • Input Impedance (): 1M
  • Maximum Real-time Sampling Rate: 1Mspsy
  • Sampling Buffer Depth: 1024 bytes
  • Analog Bandwidth: 0-200KHz
  • Vertical Sensitivity: 10mV / Div 5V / Div (1-2-5 progressive manner)

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

2 in stock

Select Below Products to Add Together:
DSO138 2.4 inch TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Set Soldered
This item: DSO138 2.4 inch TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Set Soldered

2 in stock

Original price was: ₹1,649.00.Current price is: ₹1,449.00.
Original price was: ₹1,649.00.Current price is: ₹1,449.00.
Digital Voltmeter (0-100V) and Ammeter (10A) Dual LED Voltage Current Measurement Module
Digital Voltmeter (0-100V) and Ammeter (10A) Dual LED Voltage Current Measurement Module

2 in stock

-
+
Original price was: ₹139.00.Current price is: ₹129.00.
Add to Wishlist

This is DSO138 2.4 TFT Handheld Pocket-size Digital Oscilloscope Kit. This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.

Its easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

This boost converter is a great match for DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better use.

Technical Specifications:

  • Input Supply Voltage (VDC) : 9
  • Input Impedance (): 1M
  • Maximum Real-time Sampling Rate: 1Mspsy
  • Sampling Buffer Depth: 1024 bytes
  • Analog Bandwidth: 0-200KHz
  • Vertical Sensitivity: 10mV / Div 5V / Div (1-2-5 progressive manner)
  • Accuracy: 12Bit
  • Coupling Modes: DC / AC / GND
  • The Horizontal Time Base Range: 10s / Div 50s / Div (1-2-5 progressive manner)

Features :

  1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as the ARM test development board.
  2. Can be secondary development on the basis of this kit, for example, it can be changed to Milli voltmeter, data loggers.
  3. Adjustable vertical displacement, and with instructions.
  4. With automatic, regular and one-shot modes, easy to capture the moment waveform.
  5. Available rising or falling edge trigger.
  6. Observable previous trigger waveform (negative delay).
  7. Can freeze at any time waveform display (the HOLD function).
  8. Comes 1Hz /3.3V square wave test signal source.
  9. With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Package Includes:

  • 1 Piece– DSO138 DIY Digital Oscilloscope Kit.
  • 1 Piece– Probe.
Weight 130 g
Dimensions 118 × 70 × 19 mm

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab
