Sale!

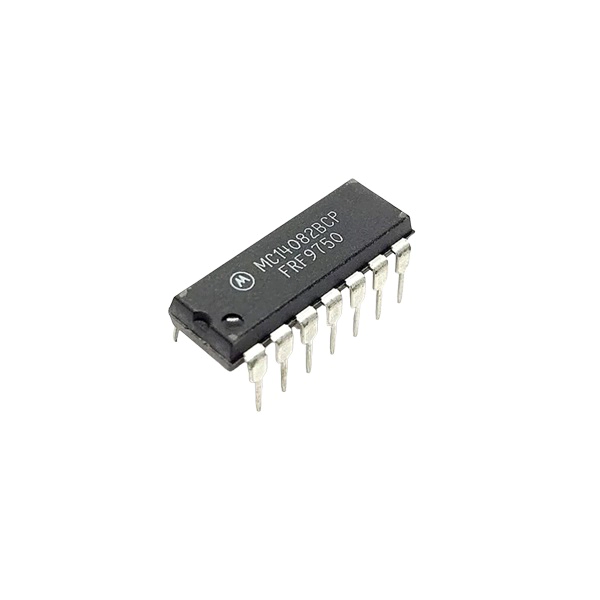

CD4082 Dual 4 Input AND Gate IC DIP-14 Package

CD4082 Dual 4 Input AND Gate IC DIP-14 Package

Original price was: ₹69.00.Current price is: ₹48.00.

SKU : 33-ERICS029

STOCK: (Oh! no) Out of stock

Quick Review:

  • CD4082 Dual 4 Input AND Gate IC
  • Series: CD4082B
  • Logic Function: AND
  • Number of Bits: 2 bit
  • Number of Gates: 2 Gate
  • Number of Input Lines: 4 Input
  • Number of Output Lines: 1 Output

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

The CD4082 is a Dual 4-Input AND Gate IC, which contains two independent 4-input AND gates. It is designed using CMOS technology, ensuring low power consumption and wide voltage range operation. The IC is packaged in a standard DIP-14 format, making it suitable for breadboard and through-hole PCB applications.

Key Features:

  • Logic Type: 4-Input AND Gate (Dual configuration)
  • Package: DIP-14
  • Supply Voltage Range: 3V to 18V (typical CMOS voltage range)
  • High Noise Immunity: Compatible with standard CMOS levels
  • Low Power Consumption: Ideal for battery-powered applications
  • Fan-Out: Typically up to 10 CMOS loads
  • Temperature Range: Available in commercial and extended industrial grades

Pinout:

Pin No. Name Description
1 A1 Input A of Gate 1
2 B1 Input B of Gate 1
3 C1 Input C of Gate 1
4 D1 Input D of Gate 1
5 Y1 Output of Gate 1
6 NC No Connection
7 GND Ground
8 NC No Connection
9 Y2 Output of Gate 2
10 D2 Input D of Gate 2
11 C2 Input C of Gate 2
12 B2 Input B of Gate 2
13 A2 Input A of Gate 2
14 VCC Power Supply

Technical Specifications:

  • CD4082 Dual 4 Input AND Gate IC
  • Series: CD4082B
  • Logic Function: AND
  • Number of Bits: 2 bit
  • Number of Gates: 2 Gate
  • Number of Input Lines: 4 Input
  • Number of Output Lines: 1 Output
  • Supply Voltage: 3 ~ 18V
  • Input Voltage Levels: CMOS compatible.
  • Propagation Delay: Depends on the supply voltage; generally faster at higher Vcc.
  • Power Consumption: Extremely low due to CMOS design.
  • Maximum Output Current: CMOS-limited; ensure proper load design.

Applications:

  1. Digital systems requiring logical “AND” operations with 4 inputs.
  2. Combinational logic circuits.
  3. Signal validation or control systems.
  4. Embedded system design.
  5. Complex logic implementations.

How It Works:

Each 4-input AND gate outputs a logic HIGH (1) only when all four inputs are HIGH (1). If any input is LOW (0), the output will be LOW (0).

Package Includes:

  • 1 Piece- CD4082 Dual 4 Input AND Gate IC DIP-14 Package
Weight 2 g
