Speed Measuring Sensor Groove Coupler Module For Arduino
Original price was: ₹135.00.₹69.00Current price is: ₹69.00.
SKU : 25-ERIRP012STOCK: 10 (WooHoo!) Available
Quick Review:
- Using imported groove optical coupling sensor, width 5mm.
- It has the output state light, if the output is high level, the lights are off. if output low level, it is on.
- If it is covered, it will output a high level; otherwise, it output a low level.
- Good signal and waveform, with a strong driving ability for more than 15mA.
- Equipped with a fixed bolt hole, easy install.
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
10 in stock
10 in stock

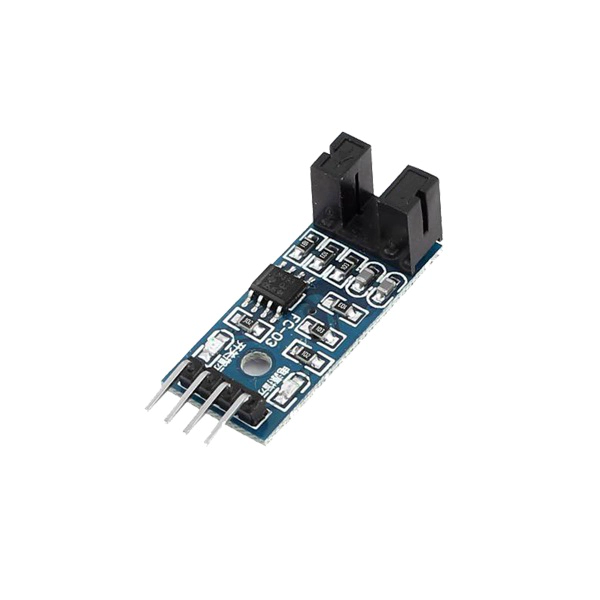

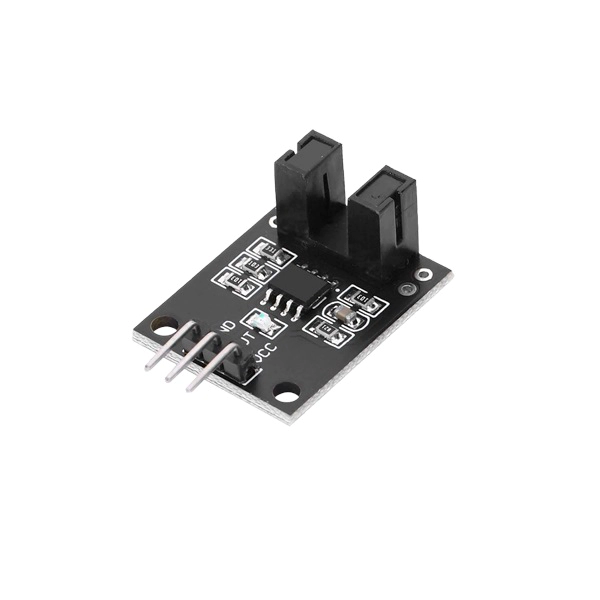

Speed Measuring Sensor Groove Coupler Module For Arduino
This is Speed Measuring Sensor Groove Coupler Module For Arduino. The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder can detect.
DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm. Widely used in motor speed detection, pulse count, the position limit, etc.
Wiring Specification :
- VCC: The positive 3.3-5 v power supply.
- GND: Connect power negative.
- DO: TTL switch signal output.
- AO: This is analog output.
Technical Specifications:
- Using imported groove optical coupling sensor, width 5mm.
- It has the output state light, if output high level, the lights are off. if output low level, it on.
- If it is covered, it will output high level; otherwise, its output low level.
- Good signal and waveform, with a strong driving ability for more than 15mA.
- Equipped with a fixed bolt hole, easy install.
- Use the LM393 wide voltage comparer.
- The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder can detect.
- DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm.
Package Includes:
- 1 Piece–Speed Measuring Sensor Groove Coupler Module For Arduino
| 85439000 | 85439000 |
|---|
