RC522 RFID Card Reader Module (13.56MHz)

RC522 RFID Card Reader Module (13.56MHz)

Original price was: ₹160.00.Current price is: ₹149.00.

SKU : 30-ERFID003

STOCK: 11 (WooHoo!) Available

Quick Review:

  • Module interface: SPI
  • Sleep Current: < 80uA
  • Peak Current: < 30mA
  • Operating Current :13-26mA / DC 3.3V
  • Idle Current :10-13mA / DC 3.3V
  • Module Size: 40mm × 60mm
  • Operating Frequency: 13.56MHz
  • Reader Distance: ≥ 50mm / 1.95″ (misfire 1)

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Bulk Quantity? Let’s Talk!

Availability:

11 in stock

Select Below Products to Add Together:
RC522 RFID Card Reader Module (13.56MHz)
This item: RC522 RFID Card Reader Module (13.56MHz)

11 in stock

Original price was: ₹160.00.Current price is: ₹149.00.
Original price was: ₹160.00.Current price is: ₹149.00.
Fly Sky FS-CT6B 6-Channel 2.4 Ghz Transmitter and Receiver
Fly Sky FS-CT6B 6-Channel 2.4 Ghz Transmitter and Receiver

Out of stock

-
+
Original price was: ₹3,649.00.Current price is: ₹1,649.00.
Add to Wishlist

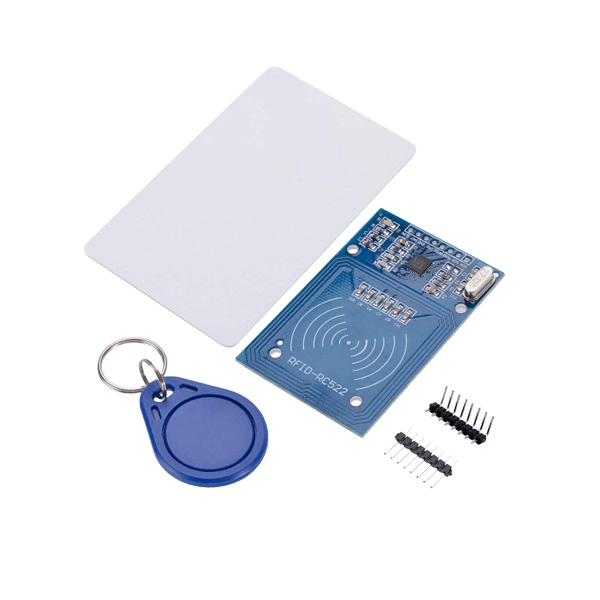

RC522 – RFID Reader / Writer 13.56MHz with Cards Kit includes a 13.56MHz RF reader cum writer module that uses an RC522 IC and two S50 RFID cards. The MF RC522 is a highly integrated transmission module for contact-less communication at 13.56 MHz. RC522 supports ISO 14443A/MIFARE mode.

RC522 – RFID Reader features an outstanding modulation and demodulation algorithm to serve effortless RF communication at 13.56 MHz. The S50 RFID Cards will ease up the process helping you to learn and add the 13.56 MHz RF transition to your project.

Technical Specifications:

RC522 – RFID Reader / Writer Features

  • Integrated MF RC522
  • 13.56MHz contactless communication card chip
  • Low-voltage, low-cost, small size of the non-contact card chip to read and write
  • Suitable for Smart meters and portable handheld devices
  • Advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols
  • 14443A compatible transponder signals
  • ISO14443A frames and error detection
  • Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products
  • MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s
  • Low cost, and ideal for user equipment development
  • The reader and RF card terminal design meets advanced applications development and production needs
  • Can be directly loaded into the various reader molds, very convenient

Specifications:

  • Module interface: SPI
  • Sleep Current: < 80uA
  • Peak Current: < 30mA
  • Operating Current :13-26mA / DC 3.3V
  • Idle Current :10-13mA / DC 3.3V
  • Module Size: 40mm × 60mm
  • Operating Frequency: 13.56MHz
  • Reader Distance: ≥ 50mm / 1.95″ (misfire 1)
  • Relative humidity: relative humidity 5% – 95%
  • Data transfer rate: Maximum 10Mbit/s
  • Environmental Storage Temperature: -40 – 85 degrees Celsius
  • Environmental Operating Temperature: -20 – 80 degrees Celsius
  • Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultra light, misfire Pro, MIFARE DESFire

Package Includes:

  • 1 Piece– RC522 RFID Card Reader Module (13.56MHz)
