-7%
NRF24L01 (2.4GHz) + PA + LNA SMA Wireless Transceiver Antenna

NRF24L01 (2.4GHz) + PA + LNA SMA Wireless Transceiver Antenna

Original price was: ₹269.00.Current price is: ₹249.00.

SKU : 29-ERNRF003

STOCK: 10 (WooHoo!) Available

Quick Review:

  • Interface: SPI.
  • LNA Noise figure: 2.6Db.
  • Antenna Gain (peak): 2Dbi.
  • 2MB rate (Open area): 520m.
  • 1MB rate (Open area): 750m.
  • 250Kb rate (Open area): 1100m.
  • Voltage: 3-3.6V (recommended 3.3V) V.
  • Maximum output power: +20dBm.
  • Emission mode current(peak): 115mA.
  • Receive Mode Current(peak): 45mA.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Bulk Quantity? Let’s Talk!

Availability:

10 in stock

Select Below Products to Add Together:
NRF24L01 (2.4GHz) + PA + LNA SMA Wireless Transceiver Antenna
This item: NRF24L01 (2.4GHz) + PA + LNA SMA Wireless Transceiver Antenna

10 in stock

Original price was: ₹269.00.Current price is: ₹249.00.
Original price was: ₹269.00.Current price is: ₹249.00.
FlySky FS-i6 2.4G 6CH AFHDS Transmitter With FS-iA6B Receiver for RC FPV Drone
FlySky FS-i6 2.4G 6CH AFHDS Transmitter With FS-iA6B Receiver for RC FPV Drone

2 in stock

-
+
Original price was: ₹6,449.00.Current price is: ₹5,849.00.

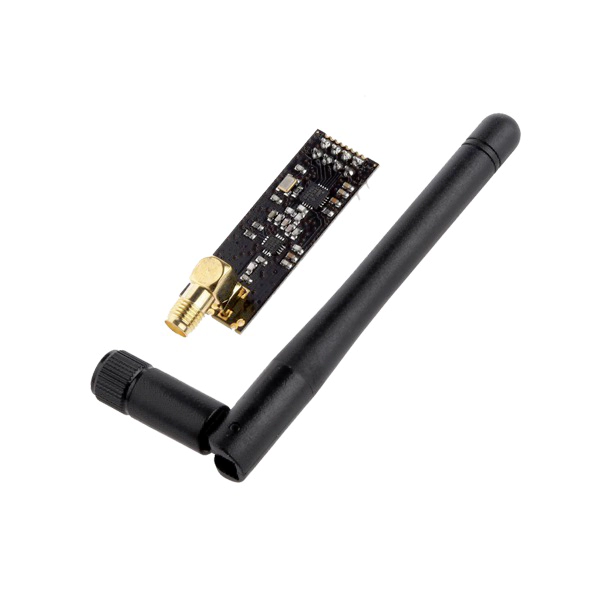

NRF24L01 (2.4GHz) + PA + LNA SMA Wireless Transceiver Antenna

The NRF24L01 module is the latest in RF modules. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the NRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature – very nice!

This board features a reverse polarized SMA connector for maximum RF range. And there are PA and LNA circuit on board, with the external antenna it can reach long distance than the one without these parts.

This module comes with the 2.4G antenna (2DB), with 250Kbps transmission rate on open air it can reach the 800-1K meters communication distance.

Technical Specifications:

  • Interface: SPI.
  • LNA Noise figure: 2.6Db.
  • Antenna Gain (peak): 2Dbi.
  • 2MB rate (Open area): 520m.
  • 1MB rate (Open area): 750m.
  • 250Kb rate (Open area): 1100m.
  • Voltage: 3-3.6V (recommended 3.3V) V.
  • Maximum output power: +20dBm.
  • Emission mode current(peak): 115mA.
  • Receive Mode Current(peak): 45mA.
  • Power-down mode current: 4.2uA.
  • Sensitivity 2Mbps mode in received: -92dBm.
  • Sensitivity 1Mbps mode in received: -95dBm.
  • PA gain: 20DbLNA gain: 10Db.
  • Sensitivity 250kbps mode in received: -104dBm.

Package Includes:

  • 1 Piece- 2.4GHz NRF24L01 Trans-receiver module.
  • 1 Piece- SMA Antenna.

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab

Reviews

There are no reviews yet.

Be the first to review “NRF24L01 (2.4GHz) + PA + LNA SMA Wireless Transceiver Antenna”

Your email address will not be published. Required fields are marked *

SKU: 29-ERNRF003 Category: Tags: , , Brand:
