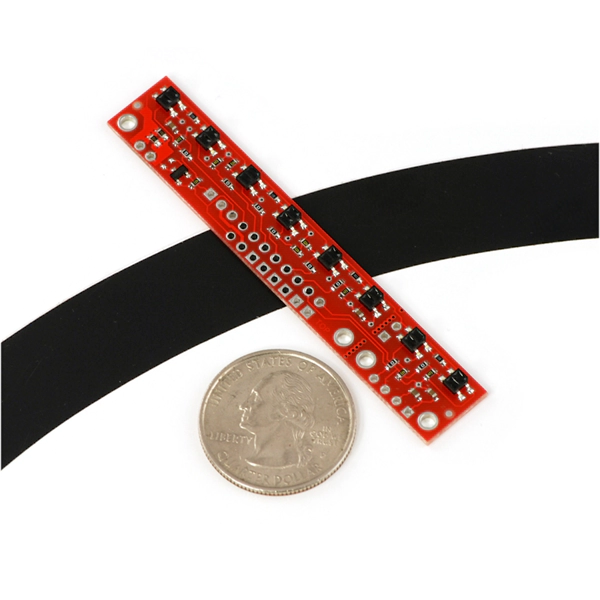

QTR-8RC Line Following Reflectance IR Sensor Array

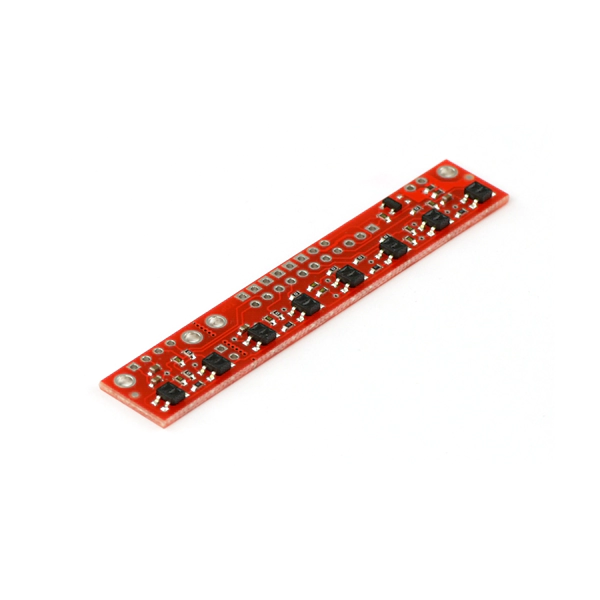

QTR-8RC Line Following Reflectance IR Sensor Array - Image 2

QTR-8RC Line Following Reflectance IR Sensor Array

Original price was: ₹349.00.Current price is: ₹289.00.

SKU : 24-ERIRP006-1

STOCK: 2 (WooHoo!) Available

Quick Review:

  • Operating voltage: 3.3 to 5V
  • Current supply: 100mA
  • Output voltage range: 0V to supplied voltage
  • Output format: 8 digital I/O compatible signal

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

2 in stock

Select Below Products to Add Together:
QTR-8RC Line Following Reflectance IR Sensor Array
This item: QTR-8RC Line Following Reflectance IR Sensor Array

2 in stock

Original price was: ₹349.00.Current price is: ₹289.00.
Original price was: ₹349.00.Current price is: ₹289.00.
RAMPS 1.4 3D Printer Controller Board Arduino Mega Shield
RAMPS 1.4 3D Printer Controller Board Arduino Mega Shield

Out of stock

-
+
Original price was: ₹575.00.Current price is: ₹199.00.

QTR-8RC Line Following Reflectance IR Sensor Array

QTR-8RC is a reflectance sensor array but intended as a line sensor. It can be used as a general-purpose proximity IR or reflectance sensor. The device has 8 pairs of IR LEDs and phototransistors mounted on a 9.525 mm pitch.

Each phototransistor in the module is followed by a pull-up resistor that forms a voltage divider and produces an analog voltage output between 0 to 5V as the function of the reflectance sensor. All the outputs are independent but LEDs are paired to halve the current consumption. The LEDs are controlled by MOSFET with a gate normally pulled high that allows LEDs to turn off by setting the MOSFET gate at low voltage.

Technical Specifications:

  • Operating voltage: 3.3 to 5V
  • Current supply: 100mA
  • Output voltage range: 0V to supplied voltage
  • Output format: 8 digital I/O compatible signal
  • Sensing distance: 3mm
  • Maximum sensing distance: 9.5mm
  • No analog-to-digital conversion required.
  • Improved sensitivity over voltage-divider analog output.
  • Parallel reading of multiple sensors is possible.

Application:

  • Line following robot
  • DIY electronics and robotics projects

Package Includes:

  • 1 Piece- QTR-8RC Line Following Reflectance IR Sensor Array
