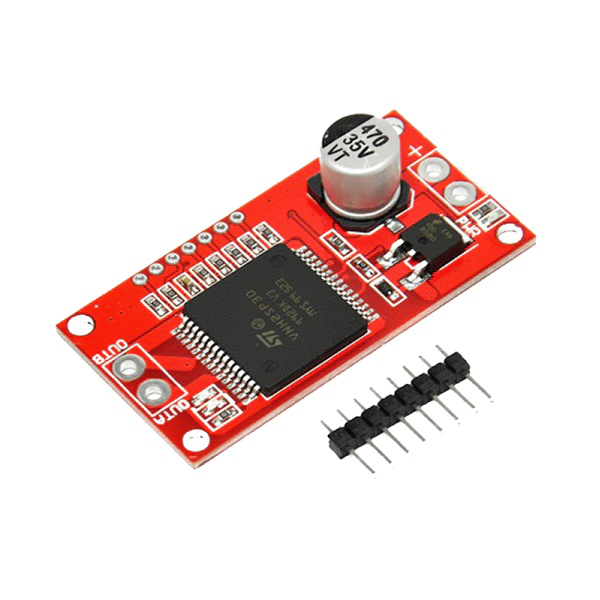

Monster Moto Shield VNH2SP30 Motor Driver 14A (Peak 30A)
Original price was: ₹1,450.00.₹1,245.00Current price is: ₹1,245.00.
Quick Review:
- Voltage Range: 5.5V – 16V
- Maximum Current rating: 30A
- Practical Continuous Current: 14 A
- MOSFET on-resistance: 19 mΩ (per leg)
- Maximum PWM frequency: 20 kHz
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
Out of stock
VNH2SP30 is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a monolithic high side driver and two low side switches. The high side driver switch is designed using the ST Microelectronics well-known and proven proprietary VI Power M0 technology which permits efficient integration on the same die of a true Power MOSFET with an intelligent signal/protection circuitry. The VIN and motor out are pitched for 5mm screw terminals, making it easy to connect larger gauge wires. INA and INB control the direction of each motor, and the PWM pins turn the motors on or off. For the VNH2SP30, the current sense (CS) pins will output approximately 0.13 volts per amp of output current.
Technical Specifications:
- Voltage Range: 5.5V – 16V
- Maximum Current rating: 30A
- Practical Continuous Current: 14 A
- MOSFET on-resistance: 19 mΩ (per leg)
- Maximum PWM frequency: 20 kHz
- Current sense output proportional to motor current
- Thermal Shutdown
- Under voltage and Overvoltage shutdown
Package Includes:
- 1 Piece-Monster Moto Shield VNH2SP30 Motor Driver 14A (Peak 30A)
