FS1000A 433mHz Transmitter Receiver RF Radio Module

Name: FS1000A 433mHz Transmitter Receiver RF Radio Module
Brand: Generic
SKU: 29-ERBRF002
Availability: InStock

Original price was: ₹169.00.Current price is: ₹99.00.

SKU : 29-ERBRF002

STOCK: 2 (WooHoo!) Available

Quick Review:

Operation voltage: DC5V
Static Current: 4MA
Receiver frequency: 433.92MHZ; 315 Mhz
Sensitivity: 105DB
Dimension: 30*14*9mm
External Antenna: 32CM signal wire spiral

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Bulk Quantity? Let’s Talk!

Availability:

2 in stock

Select Below Products to Add Together:

FS1000A 433mHz Transmitter Receiver RF Radio Module

This item: FS1000A 433mHz Transmitter Receiver RF Radio Module

2 in stock

FLY SKY FS IA6B RF 2.4GHz 6CH PPM Output with iBus Port Receiver

~~FLY SKY FS IA6B RF 2.4GHz 6CH PPM Output with iBus Port Receiver~~

Out of stock

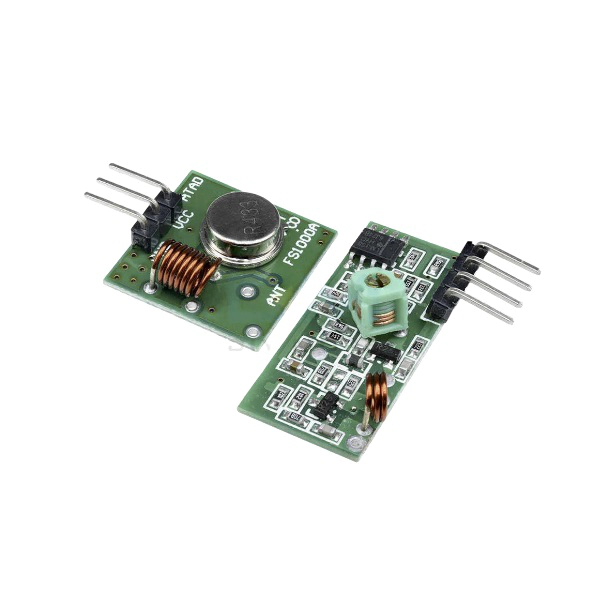

This is FS1000A 433mHz Transmitter Receiver RF Radio Module. This RF module comprises an RF Transmitter and an RF Receiver. The transmitter/receiver (Tx/Rx) pair operates at a frequency of 433 MHz. An RF transmitter receives serial data and transmits it wirelessly through RF through its antenna connected at pin4.

The transmission occurs at the rate of 1Kbps 10Kbps. The transmitted data is received by an RF receiver operating at the same frequency as that of the transmitter.

This low-cost RF transmitter can be used to transmit signals up to 100 meters (the antenna design, working environment, and supply voltage will seriously impact the effective distance). Its good for a short distance, battery power device development. 433 MHz is the operating frequency for transmitter and receiver pair.

Technical Specifications:

Receiver Module specification

Operation voltage: DC5V
Static Current: 4MA
Receiver frequency: 433.92MHZ; 315 Mhz
Sensitivity: 105DB
Dimension: 30*14*9mm
External Antenna: 32CM signal wire spiral

Transmitter Module Specification

Operating voltage: 3-12V
Operating frequency: 433.92MHz; 315Mhz
Standby current: 0mA
Operating current:20-28mA
Transmission distance:> 500m (open to receiving plate sensitivity at-103dBm distance of more than)
Output Power: 16dBm (40mW)
Transfer rate: <10Kbps
Modulation mode: OOK (Amplitude Modulation)
Operating Temperature: –10 ~ +70
Size: 19 19 8mm

Package Includes:

1 Piece- FS1000A 433mHz Transmitter.
1 Piece- FS1000A 433mHz Receiver.
