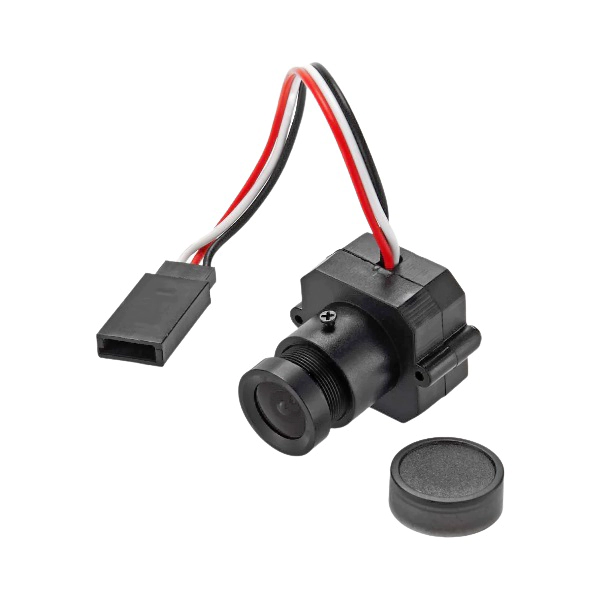

FPV 12V Digital HD PAL Camera(TAROT 600TVL )

This 600TVL 170 degree super small colour video mini FPV camera with audio can be used for Mini 200 250 300 Quad-copter. Its tiny and lightweight size with best features in the class like 3.7-5V 100mA operating power requirement, 1280 x 960 recording resolution, and great capturing capability even in low light conditions makes it suitable for your quad-copter Application and many more mark able features are listed below.

Technical Specifications:

• Lense Viewing Angle (FOV) : 170
• Gamma Correction : 0.45
• Horizontal Resolution (TVL) : 600
• Image Sensor : 1/4 CMOS image sensor
• Minimum Illumination : 0.1 Lux / F1.2
• Operating Temperature Range (C) : -10 to 50
• Operating Voltage (VDC) : 3.7 ~ 5
• Pixel Resolution : 1280 x 960
• S/N Ratio (dB) : 48
• Video Output : 1.0Vp P75.
• Working Current : 100 mA
• Illumination: 0.5LUX
• Format:PAL / NTSC
• Audio Lens: Wide-angle 1.8mm (170 degree)
• Sensitive area: 3.5964mm x 2.7084mm
• 648 pixels (horizontal) 488 (vertical) 648 (horizontal) 488 (vertical)
• Scanning Frequency Horizontal: 15.625KHz
• Vertical: 50Hz
• level: 15.7343KHz
• Vertical: 60Hz
• Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
• Standard Lens : 1.8 mm
• Size of the lens : M10
• Power: DC5V 10% 70mA 10%
• Operating temperature Range: -10 C ~ 60 CRH95% Max

Package Includes:

• 1 Piece- FPV 12V Digital HD PAL Camera(TAROT 600TVL )

Note: This FPV supports 3.7-5V voltage range only Image may vary from actual product in terms of IC branding and PCB design.
