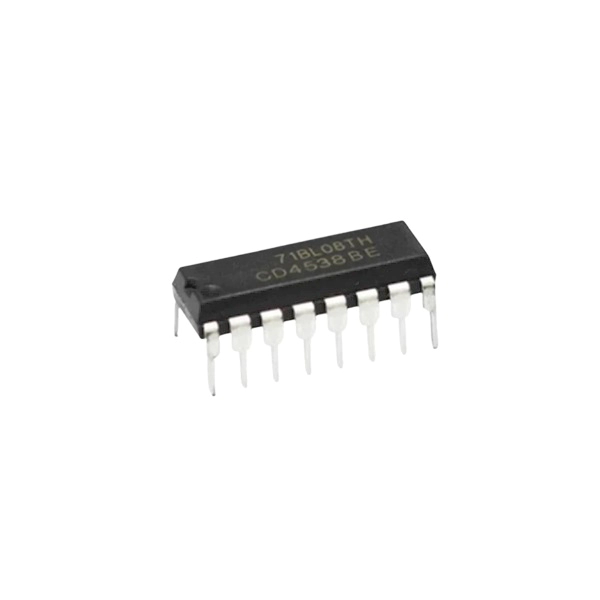

CD4538 - Dual Precision Monostable Multivibrator IC

CD4538 – Dual Precision Monostable Multivibrator IC

Original price was: ₹89.00.Current price is: ₹49.00.

SKU : 33-ERICS031

STOCK: (Oh! no) Out of stock

Quick Review:

  • Product Type: Monostable Multivibrator
  • Logic Type: Monostable Multivibrator
  • Operating Supply Voltage: 3.3V to 12V
  • Supply Current: 0.02 mA

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

The CD4538 is a dual, precision monostable multivibrator featuring independent trigger and reset controls. It is both re-triggerable and resettable, with internally latched control inputs. This device offers two trigger inputs, enabling either rising or falling edge triggering. The reset inputs are active LOW, preventing triggering when active. Utilizing linear CMOS techniques, the device ensures precise control of output pulse-width. The pulse duration and accuracy are determined by external components RX and CX.

Technical Specifications:

  • Product Type: Monostable Multivibrator
  • Logic Type: Monostable Multivibrator
  • Operating Supply Voltage: 3.3V to 12V
  • Supply Current: 0.02 mA
  • Propagation Delay Time: 600 ns, 300 ns, 220 ns
  • High-Level Output Current: -4.2 mA
  • Low-Level Output Current: 4.2 mA
  • Operating Temperature Range: -55°C to +125°C
  • Mounting Style: SMD/SMT
  • Package/Case: SOIC-16

Package Includes:

  • 1 Piece-  CD4538 – Dual Precision Monostable Multivibrator IC
Weight 2 g

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab
