-34%

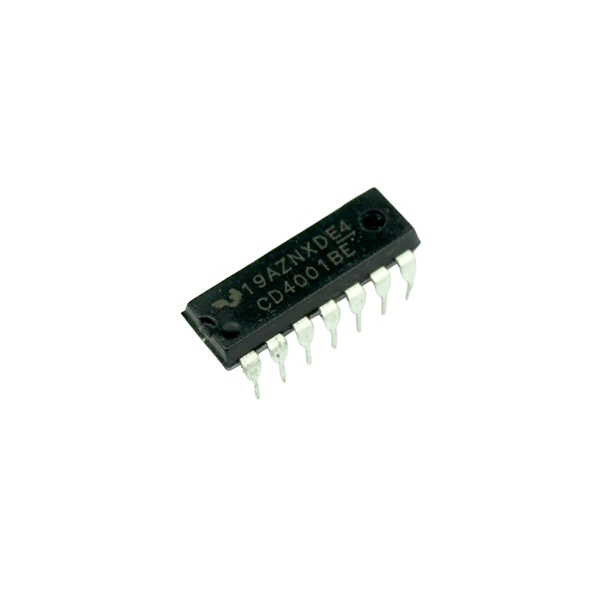

CD4001 Quad 2 Input NOR Gate IC DIP-14 Package

CD4001 Quad 2 Input NOR Gate IC DIP-14 Package

Original price was: ₹89.00.Current price is: ₹59.00.

SKU : 33-ERICS026

STOCK: (Oh! no) Out of stock

Quick Review:

  • 4 NOR gates present.
  • DIP Package
  • Operating Voltage Range 5-20V
  • Universal gate

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

The CD4001 IC is a Quad 2-Input NOR Gate IC, meaning it contains four independent NOR gates, each with two inputs. It’s commonly used in digital logic circuits and is available in a standard DIP-14 package, making it suitable for breadboard prototyping and through-hole PCB designs.

Key Features:

  • Logic Type: NOR Gate (2 inputs per gate)
  • Package Type: DIP-14
  • Supply Voltage: Operates over a wide voltage range (typically 3V to 15V)
  • Low Power Consumption: CMOS technology ensures minimal power usage.
  • Input/Output Voltage Levels: Compatible with standard CMOS voltage levels.
  • Temperature Range: Standard or extended ranges depending on the manufacturer.

Pinout:

  1. Pin 1, 2: Inputs for NOR Gate 1
  2. Pin 3: Output of NOR Gate 1
  3. Pin 4, 5: Inputs for NOR Gate 2
  4. Pin 6: Output of NOR Gate 2
  5. Pin 7: Ground (GND)
  6. Pin 8, 9: Inputs for NOR Gate 3
  7. Pin 10: Output of NOR Gate 3
  8. Pin 11, 12: Inputs for NOR Gate 4
  9. Pin 13: Output of NOR Gate 4
  10. Pin 14: Supply Voltage (Vcc)

Technical Specifications:

  • 4 NOR gates present.
  • DIP Package
  • Operating Voltage Range 5-20V
  • Universal gate
  • Propagation Delay: Typically in the nanosecond range, depending on the supply voltage and load capacitance.
  • Input/Output Current: Limited to CMOS specifications to prevent damage.

Applications:

  • Basic logic functions
  • Signal inversion
  • Oscillators
  • Combinational and sequential logic design
  • Digital systems

Package Includes:

  • 1 Piece- CD4001 Quad 2 Input NOR Gate IC DIP-14 Package
Weight 2 g
