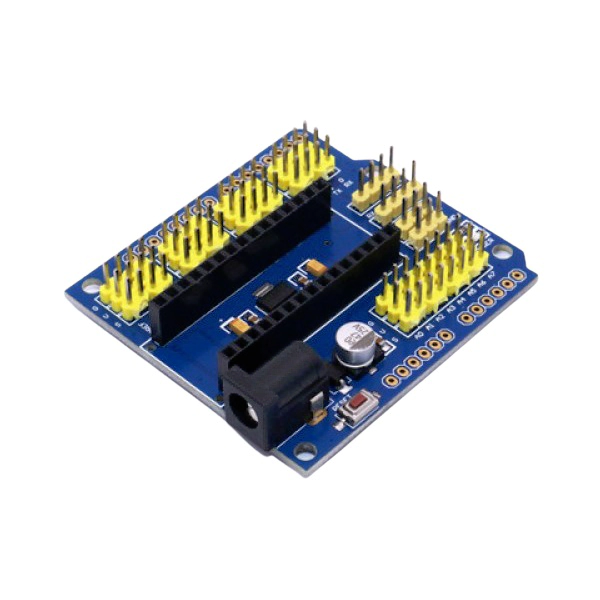

Arduino Nano 328P Expansion Adapter Breakout Board I/O Shield

Arduino Nano 328P Expansion Adapter Breakout Board I/O Shield

Original price was: ₹169.00.Current price is: ₹148.00.

SKU : 17-ERDLP010

STOCK: 1 (WooHoo!) Available

Quick Review:

  • Input Voltage(V): 3.3 ~ 5
  • No. of Analog Pins: 8
  • No. of PWM Pin: 6
  • Compatible with Arduino NANO.
  • All digital and analog pins breakout.

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

1 in stock

Select Below Products to Add Together:
Arduino Nano 328P Expansion Adapter Breakout Board I/O Shield
This item: Arduino Nano 328P Expansion Adapter Breakout Board I/O Shield

1 in stock

Original price was: ₹169.00.Current price is: ₹148.00.
Original price was: ₹169.00.Current price is: ₹148.00.
RS232 to TTL Serial Interface Module
RS232 to TTL Serial Interface Module

Out of stock

-
+
Original price was: ₹96.00.Current price is: ₹65.00.
Add to Wishlist

The Arduino Nano 328P Expansion Adapter Breakout Board I/O Shield is designed to expand the capabilities of the Arduino Nano, making it easier to connect various peripherals and sensors. This shield provides convenient access to the I/O pins of the Arduino Nano, allowing for simpler prototyping and development.

Technical Specifications

  1. Compatibility: Designed for the Arduino Nano (ATmega328P)
  2. Pin Headers:
    • Breaks out all Arduino Nano I/O pins to standard 0.1″ headers
    • Includes headers for power, analog inputs, and digital I/O
  3. Power Supply:
    • Supports external power input (commonly 5V or 12V)
    • Onboard voltage regulator (typically 5V)
  4. Additional Connectors:
    • Power connector (often barrel jack or terminal block)
    • Serial communication pins (TX, RX)
  5. Size: Compact size to match the Arduino Nano form factor
  6. Mounting: Includes mounting holes for secure attachment to projects or enclosures

Key Features

  1. Ease of Access:
    • All pins of the Arduino Nano are broken out for easy access
    • Clear labeling of pins for intuitive connections
  2. Power Management:
    • Onboard voltage regulation for stable power supply
    • Supports external power sources for powering peripherals
  3. Peripheral Connections:
    • Easily connect sensors, motors, displays, and other modules
    • Headers for analog and digital pins facilitate prototyping
  4. Flexibility:
    • Suitable for a wide range of projects, from simple sensors to complex systems
    • Compatible with standard Arduino Nano libraries and sketches

Usage Scenarios

  • Prototyping: Ideal for breadboarding and rapid prototyping of Arduino projects.
  • Development: Useful in development environments where frequent changes to connections are needed.
  • Educational Projects: Simplifies connections for educational purposes, making it easier for students to learn about microcontroller projects.
  • DIY Projects: Provides a robust foundation for various DIY electronics projects.

Setup Steps

  1. Insert Arduino Nano: Place the Arduino Nano into the designated headers on the breakout board.
  2. Connect Peripherals: Use jumper wires to connect sensors, actuators, and other modules to the appropriate pins on the breakout board.
  3. Power Supply: Connect an external power source if required (5V or 12V) to the power input.
  4. Upload Code: Use the Arduino IDE to upload your sketch to the Arduino Nano.

Example Projects

  1. Sensor Hub: Connect multiple sensors (temperature, humidity, light) to the breakout board for a comprehensive environmental monitoring system.
  2. Motor Control: Use the breakout board to connect motor drivers and control motors for robotics projects.
  3. Display Interfaces: Attach LCD or OLED displays for creating user interfaces and displaying data.
  4. IoT Applications: Integrate Wi-Fi or Bluetooth modules for Internet of Things (IoT) projects, allowing for remote monitoring and control.

By providing easy access to the Arduino Nano’s I/O pins and offering robust power management, the Arduino Nano 328P Expansion Adapter Breakout Board I/O Shield is an invaluable tool for makers, hobbyists, and educators looking to streamline their development process and expand the capabilities of their Arduino Nano projects.

 Technical Specifications:

  • Input Voltage(V): 3.3 ~ 5
  • No. of Analog Pins: 8
  • No. of PWM Pin: 6
  • Compatible with Arduino NANO.
  • All digital and analog pins breakout.
  • Compact size.
  • External power supply current support.
  • Leads all pins out, convenient for wiring and doing experiments.

Package Includes:

  • 1 Piece– Arduino Nano 328P Expansion Adapter Breakout Board I/O Shield
Weight 15 g
Dimensions 18 × 54 × 12 mm
