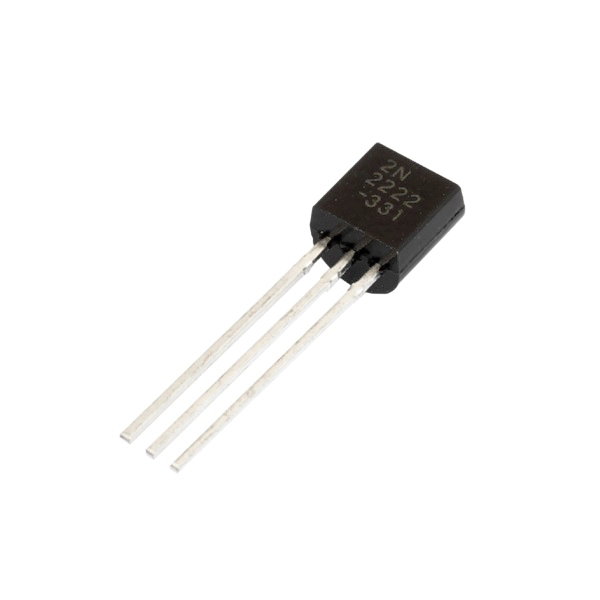

2N2222 NPN Transistors
Original price was: ₹12.00.₹7.00Current price is: ₹7.00.
Quick Review:
- Package Type: TO-92
- Transistor Type: Bi-Polar high current NPN Transistor
- Max Collector Current(IC): Continuous Collector current (IC) is 800mA
- Maximum Collector-Emitter Voltage (VCE): 40V
- Maximum Collector-Base Voltage (VCB): 75V
- Emitter-Base Voltage (VEBO): 6V Base Current(IB) is 5mA maximum
- The Collector Dissipation (Pc): 625 milliwatt
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
520 in stock
520 in stock
Out of stock
The Diotec Semiconductor (Germany) 2N2222A is a NPN bipolar junction transistor housed in a TO-92 package and rated for use in a variety of applications including the roughest of automotive applications. The transistor housing has a flammability rating of UL 94V-0, while the transistor is both RoHS- and REACH-compliant. The 2N2222A has an approximate hFE of 200, a maximum collector current of 600 mA, a VCEO of 40 V, a maximum power dissipation of 625 mW, and a maximum transition frequency of 250 MHz. The operating temperature range of the 2N2222A is –55°C to 150°C, with a solder ability profile of 260°C for 10 seconds. The recommended complementary PNP transistor is the 2N2907A.
Technical Specifications:
- Package Type: TO-92
- Transistor Type: Bi-Polar high current NPN Transistor
- Max Collector Current(IC): Continuous Collector current (IC) is 800mA
- Maximum Collector-Emitter Voltage (VCE): 40V
- Maximum Collector-Base Voltage (VCB): 75V
- Emitter-Base Voltage (VEBO): 6V Base Current(IB) is 5mA maximum
- The Collector Dissipation (Pc): 625 milliwatt
- Max Transition Frequency (fT): 300 MHz
- DC Current Gain: (hFE) is 100
- Operating temperature Should Be: -55 to +150 Centigrade
- Bi-Polar high current NPN Transistor
Package Includes:
- 1 Piece-2N2222 NPN Transistors
| Weight | 2 g |
|---|---|
| Dimensions | 5 × 5 × 12 mm |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
