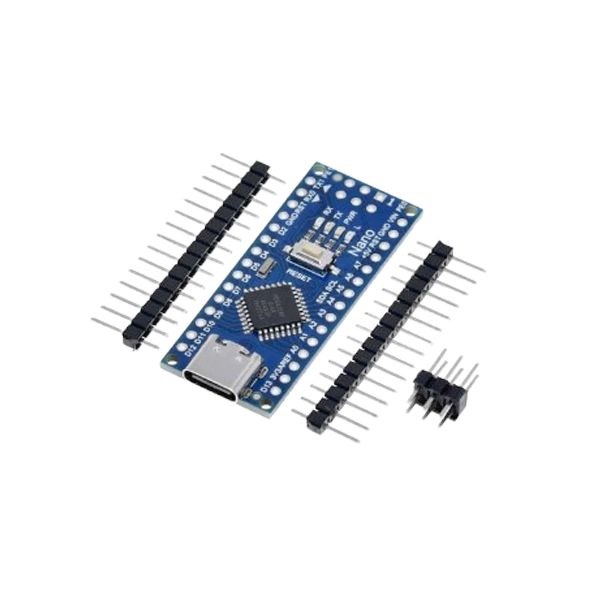

Arduino Nano V3.0 CH340G C-Type (Without Cable)

Arduino NANO Version 3 C-type is the open-source smallest Embedded Development board launched by Arduino based on Atmega328 SMD Package Microcontroller. It is a Surface mount Breadboard Friendly board integrated with Mini USB Port. DC Power Jack is unavailable on this Board so that power can be given through Mini USB Cable. It automatically senses and switches to the higher potential source of power, there is no need for the power select jumper.

ATmega328P Microcontroller: The Nano Development Board typically uses the ATmega328P microcontroller, which is also used in the Arduino Uno. It operates at 16 MHz and offers 32KB of flash memory, 2KB of SRAM, and 1KB of EEPROM. The microcontroller executes the program code and controls the behavior of the board.

CH340G USB-to-Serial Converter: This board is equipped with a CH340G USB-to-Serial converter chip. The CH340G chip allows the board to communicate with a computer via a USB connection. It serves the dual purpose of enabling the upload of sketches (programs) to the board and establishing a serial communication link between the board and the computer. Depending on your computer’s operating system, you may need to install drivers for the CH340G chip.

C Type USB Connector: The “C Type” USB connector typically refers to the type of USB connector used on the board. This variant of the Nano features a specific USB connector type (e.g., Mini-USB or Micro-USB), known as the “C Type” connector. This USB connector serves as the primary interface for connecting the board to a computer or power source. It’s important to identify the specific USB connector type on your board for compatibility with USB cables.

Compact Form Factor: Similar to other Nano boards, this version is known for its small and compact form factor. It is designed to be space-efficient and is suitable for projects with limited space requirements.

GPIO Pins: The Nano Development Board includes a set of GPIO (General Purpose Input/Output) pins, which encompass digital pins, analog pins, and power pins. These pins enable you to connect various sensors, actuators, and electronic components to the board.

 Technical Specifications:

• Model: Arduino Nano
• Port Type: C-Type
• SRAM:  2 KB
• EEPROM:  1 KB
• Clock Speed:  16 MHz
• Microcontroller: Atmel ATmega328 SMD Package
• Operating Voltage (logic level): 5 V
• Input Voltage (recommended): 7-12 V
• Input Voltage (limits): 6-20 V
• Digital I/O Pins: 14 (of which 6 provide PWM output)
• Analog Input Pins: 8
• DC Current per I/O Pin: 40 mA
• Flash Memory:  32 KB (2KB used by boot loader)
• Dimensions :   0.70” x 1.70”

Package Includes:

• 1 Piece– Arduino Nano V3.0 CH340G C-Type (Without Cable)
